Construction Hoist
E10 - E10 BATTERY-OPERATED

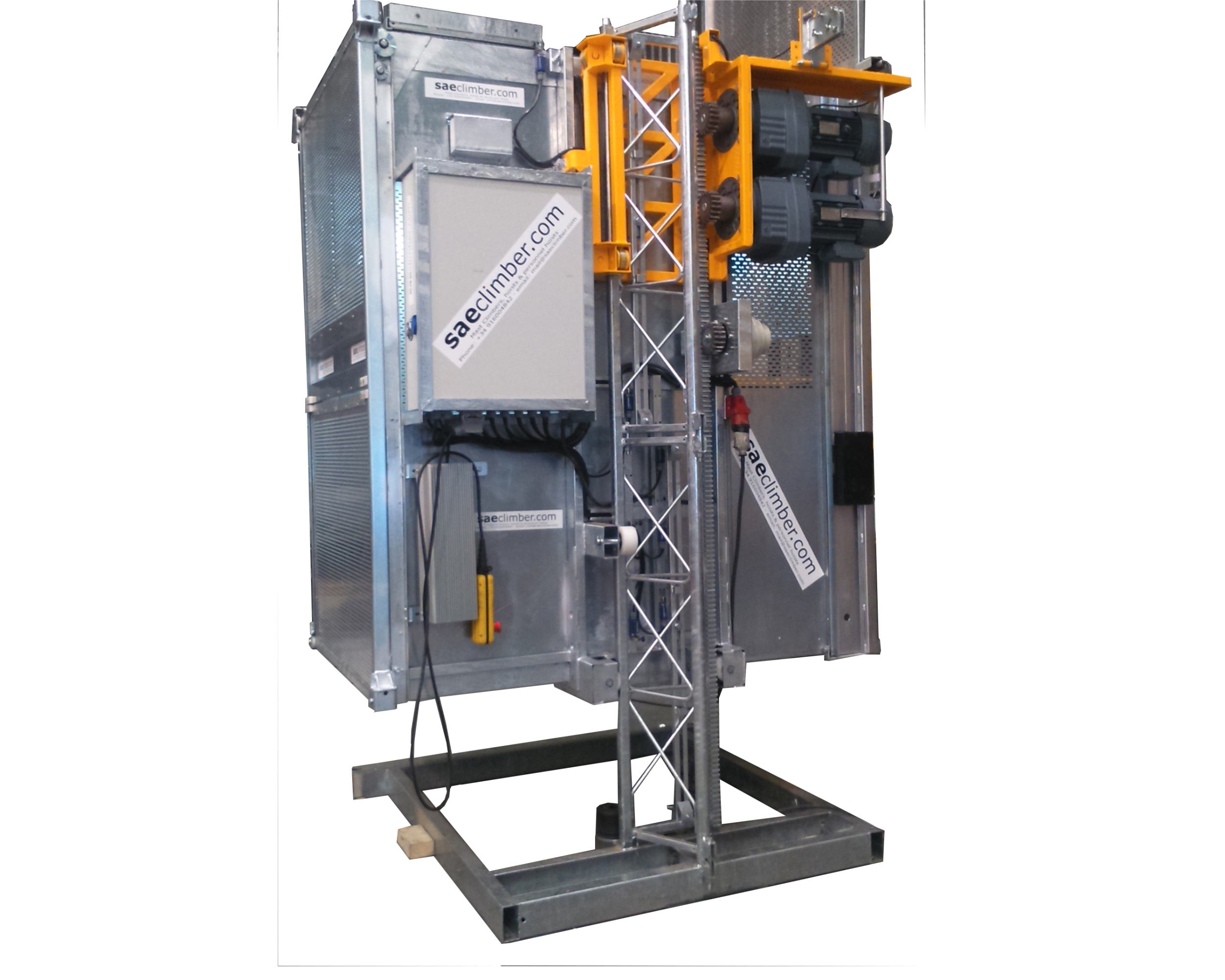

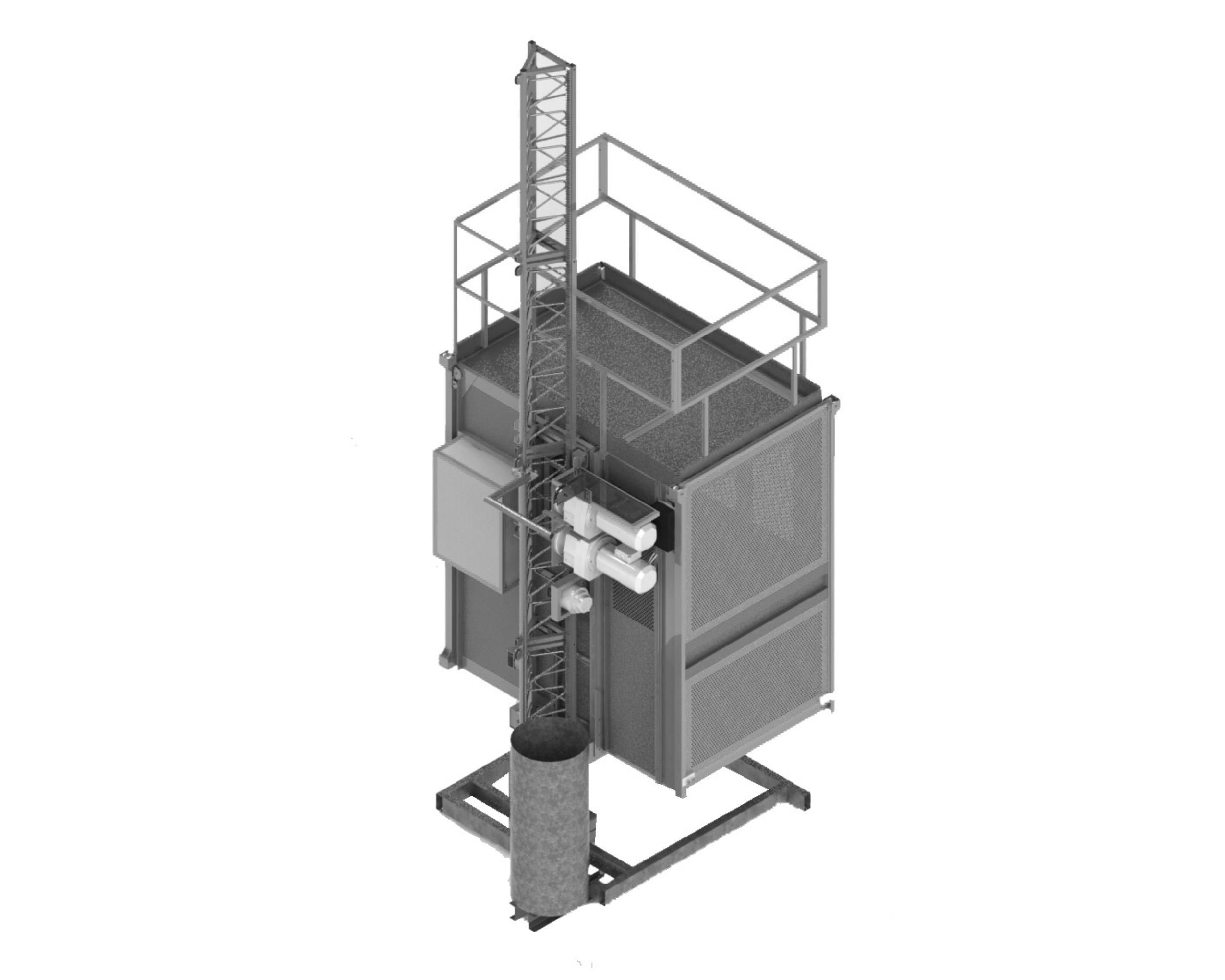

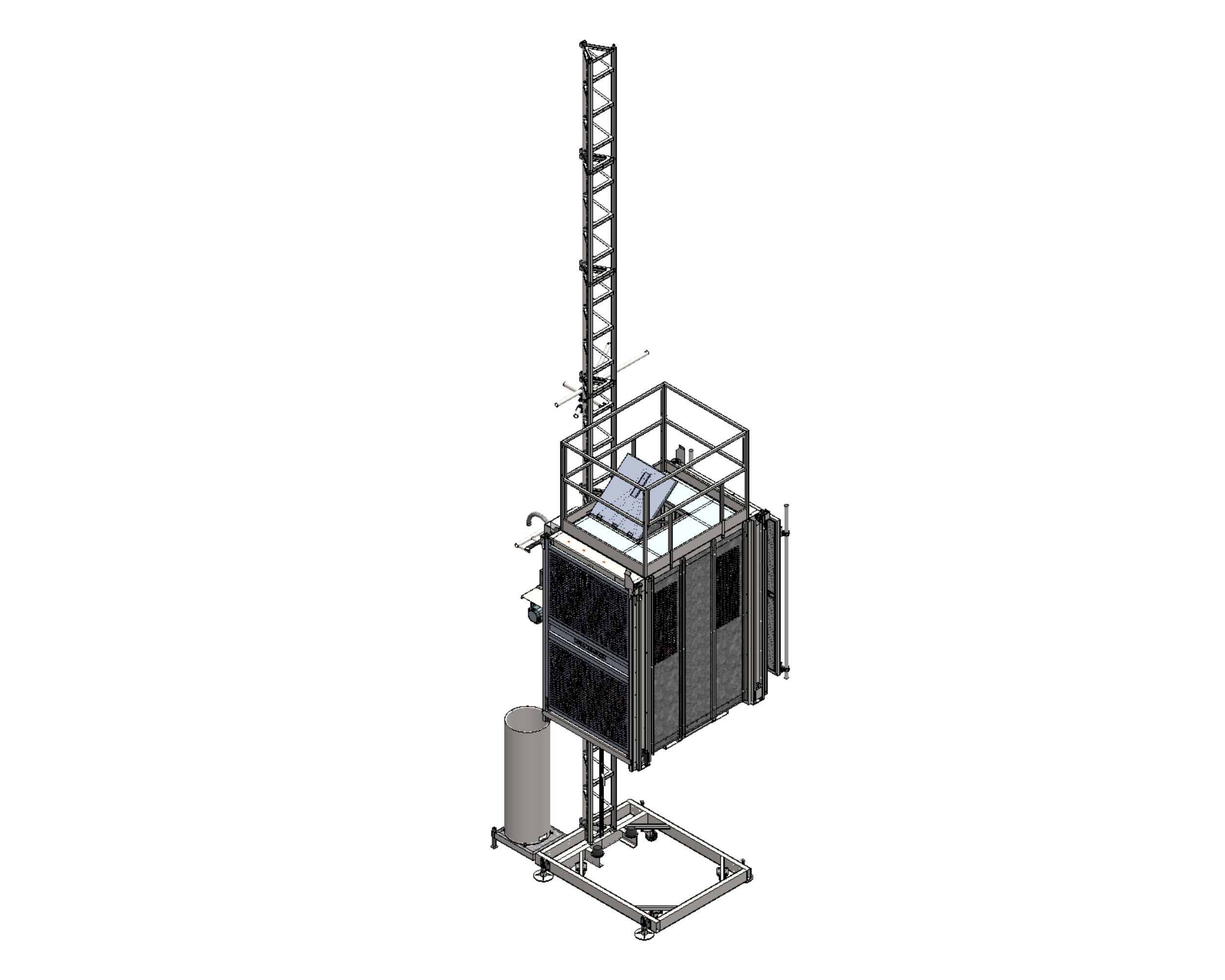

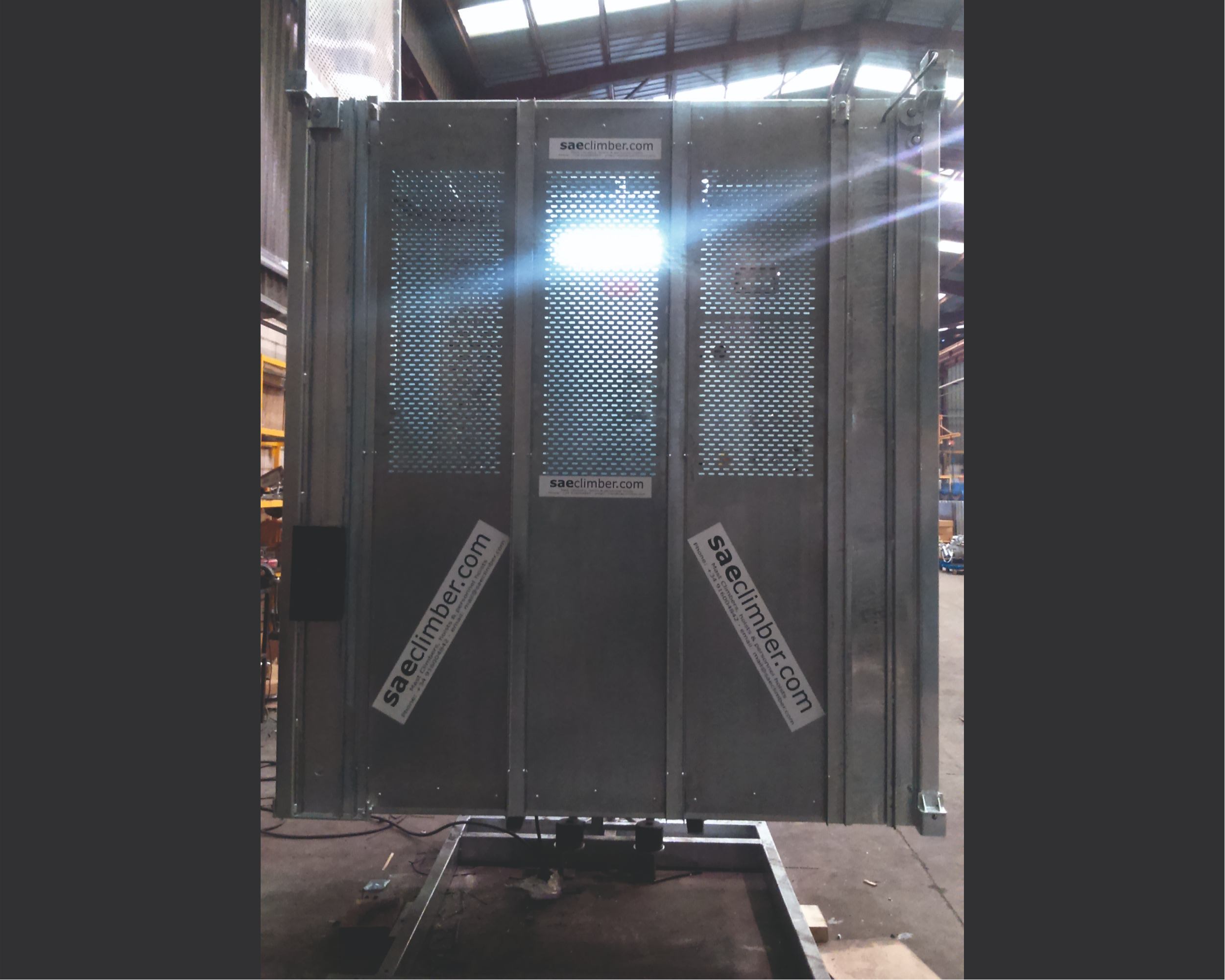

The SAEclimber E10 Passenger & Material hoist is designed according to EN 12159 standard. Available in 2 different motor configurations with the speeds 20 m/min or 36 m/min (with VFC). Payload is 1000 Kg. The SAEclimber E10 construction hoist is made to be used even in intensive working conditions, in works in town or when a service elevator is needed.
The mast section is compatible with the light range of Goods hoist and Transport Platforms by SAEclimber (H05,PH5 and H10, PH10) as well as the E05 Construction hoist.
This hoist is also available in the BATTERY-OPERATED Version where power supply is not available.

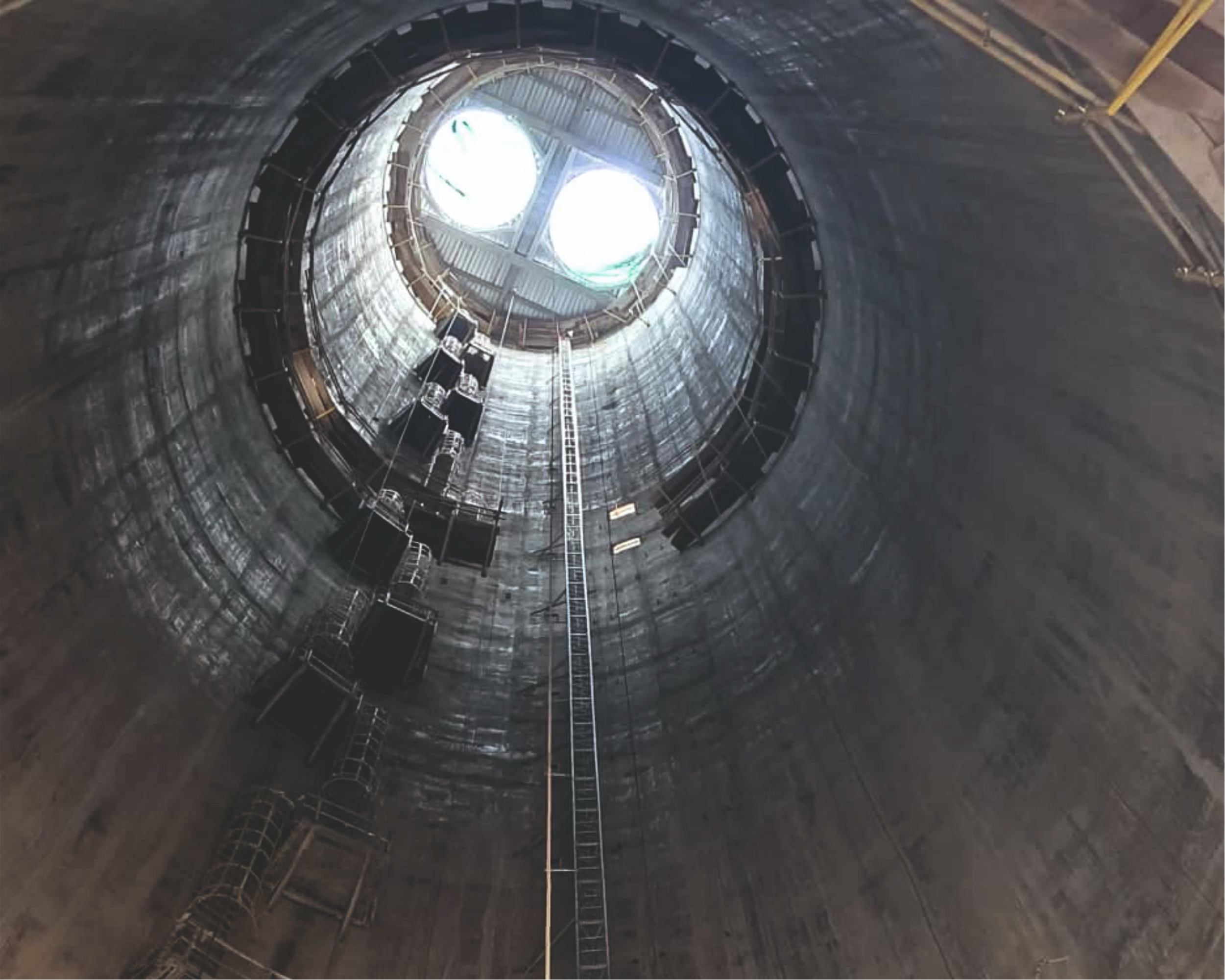

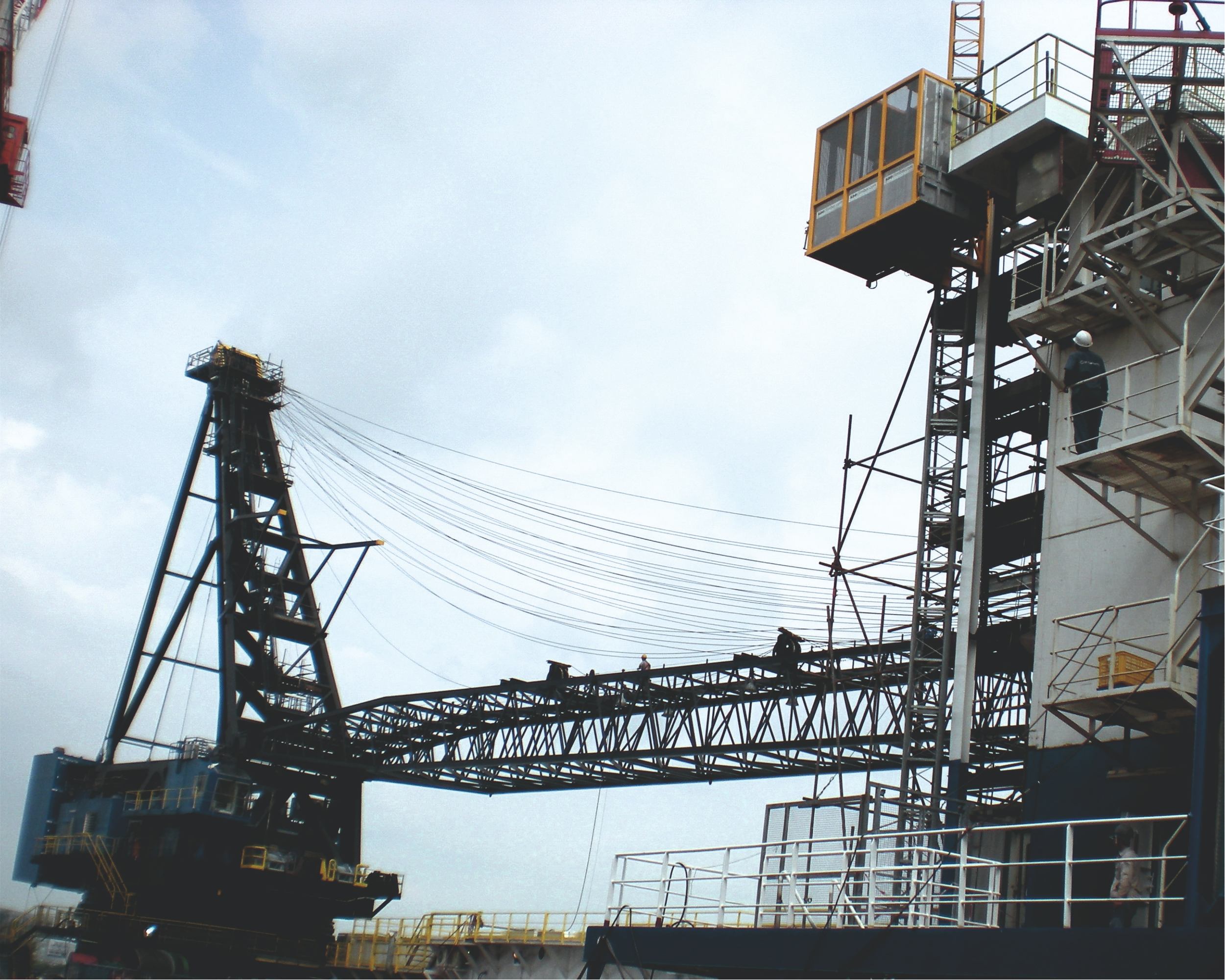

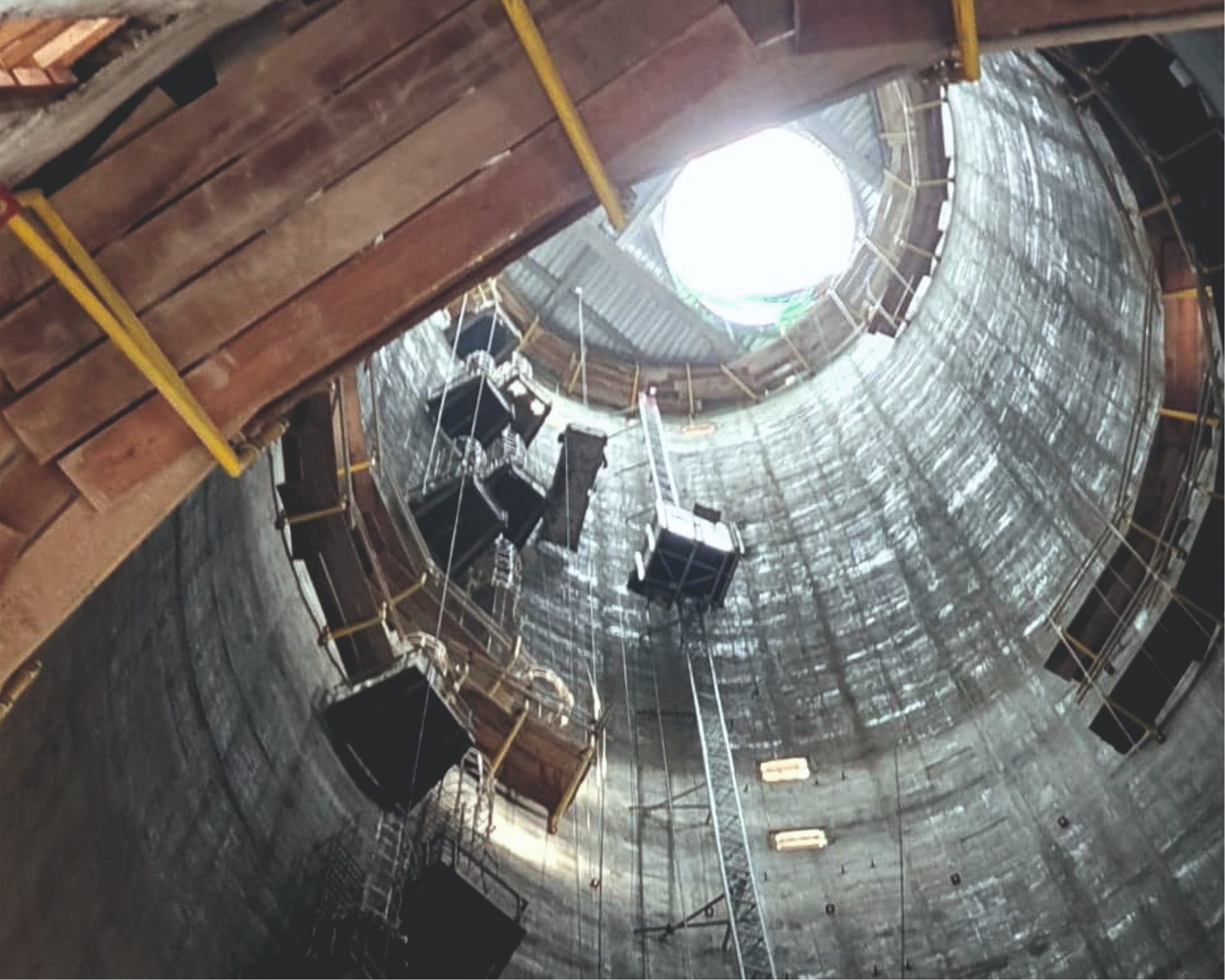

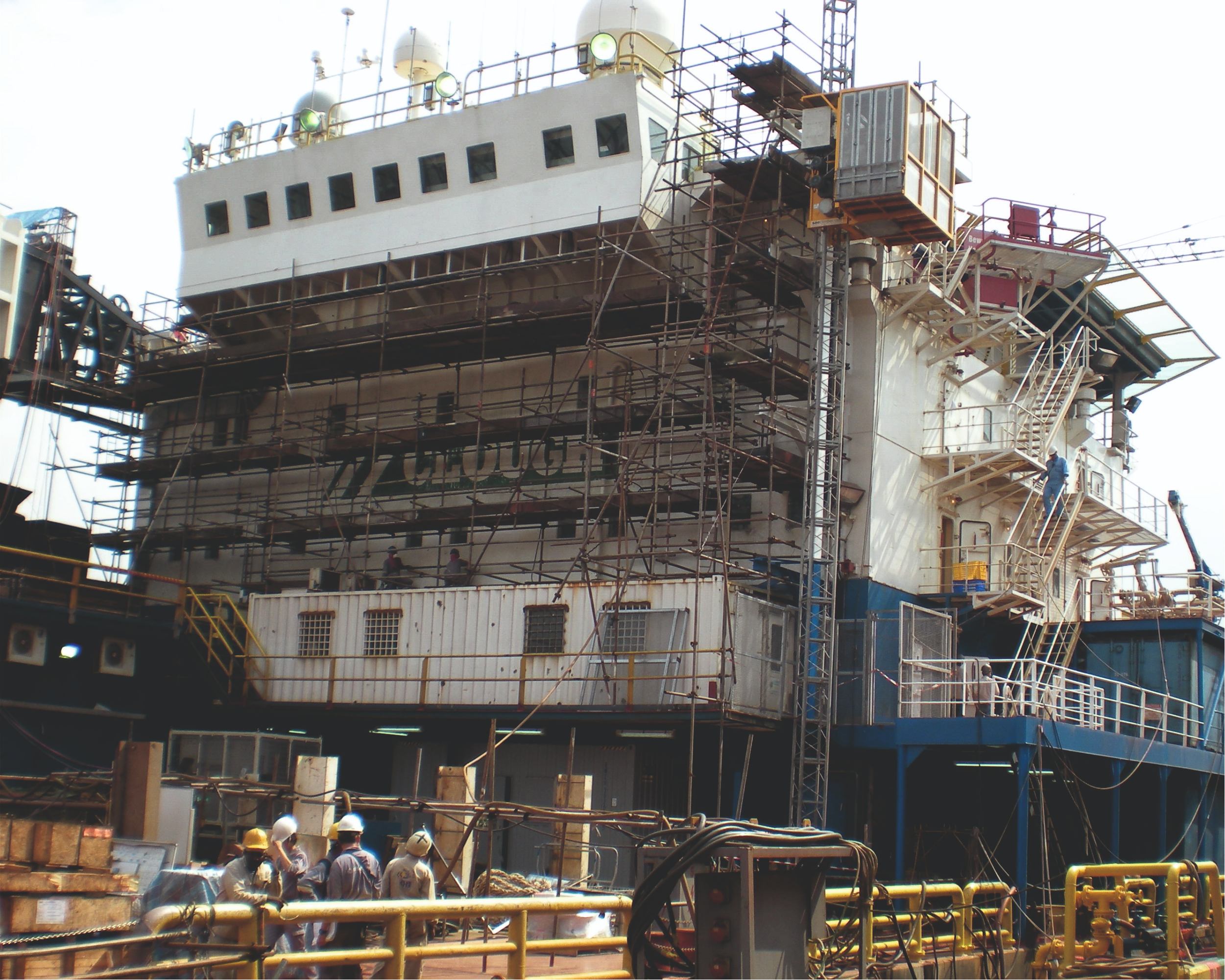

Images

Each image shows the quality, design, and technology that define our products, designed to offer safety, efficiency, and durability in every project.

Advantages

Ideal for city works or as a service elevator.
Simple and reliable.
Fast in assembly.
Economic but performing.

Safety Features

Base chassis with certified Rubber shock absorbers
Cable basket or cable trolley
Overload device (detection by load cells)
Ascend & descend limit switch
Mast ascend & descend emergency limit switch
Mast detection inductive limit switch
Power cable anticut limit switch and anti‐tear device, for electric cable protection (avoiding cable rupture)
Electromechanical limit switch for cage landing door Inductive for cage boarding door
Ladder limit switch
Mast and anchorage trapdoor limit switch
Landing door mechanical limit switch: Do not open if the cabin is not at the floor
Base enclosure access door electromechanical limit switch : Do not open if the cabin is not at the ground
Ground enclosure
Anti‐over‐run mechanical device
First class Self‐braking motor gear
External independent parachute emergency brake (CE certified)
Terminal Mast section with half rack to avoid overrun
Platform or roof hatch for erection with safety rails and safety limit switch

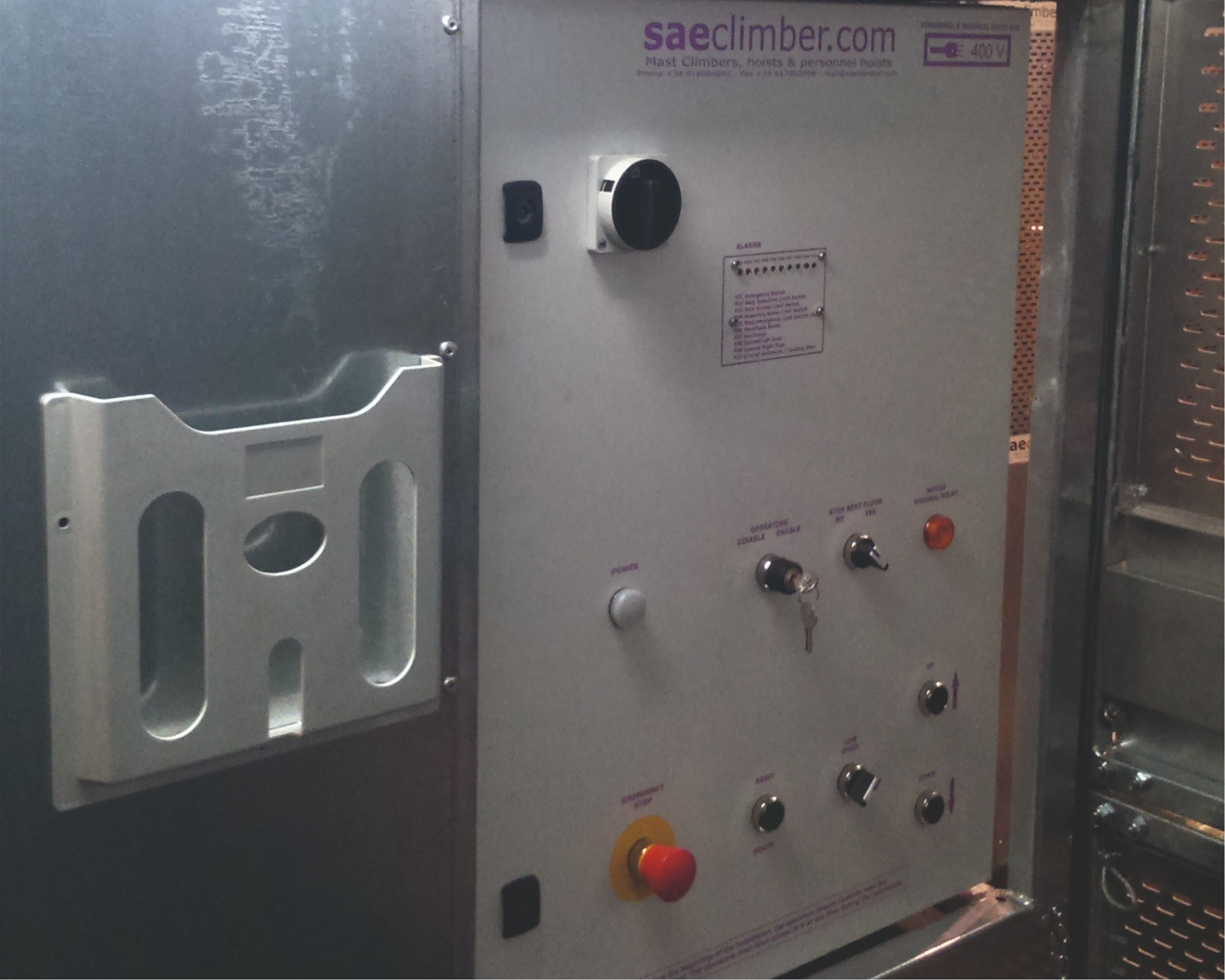

Visual Diagnostic of malfunctioning
Device for manual descent in case of power failure
Emergency light with battery or Led (CE) inside Cabin
All steel material of the supply, including the cabin, is hot galvanized
Magnetothermal protections and differential ampere switchetche

Available with Industry 4.0 remote control for faults and operation

Technical Features

Height

120 m
(*) Greater heights available on request

Speed

0 - 24 m/min version base
Con variador de frecuencia: 0 - 36 m/min

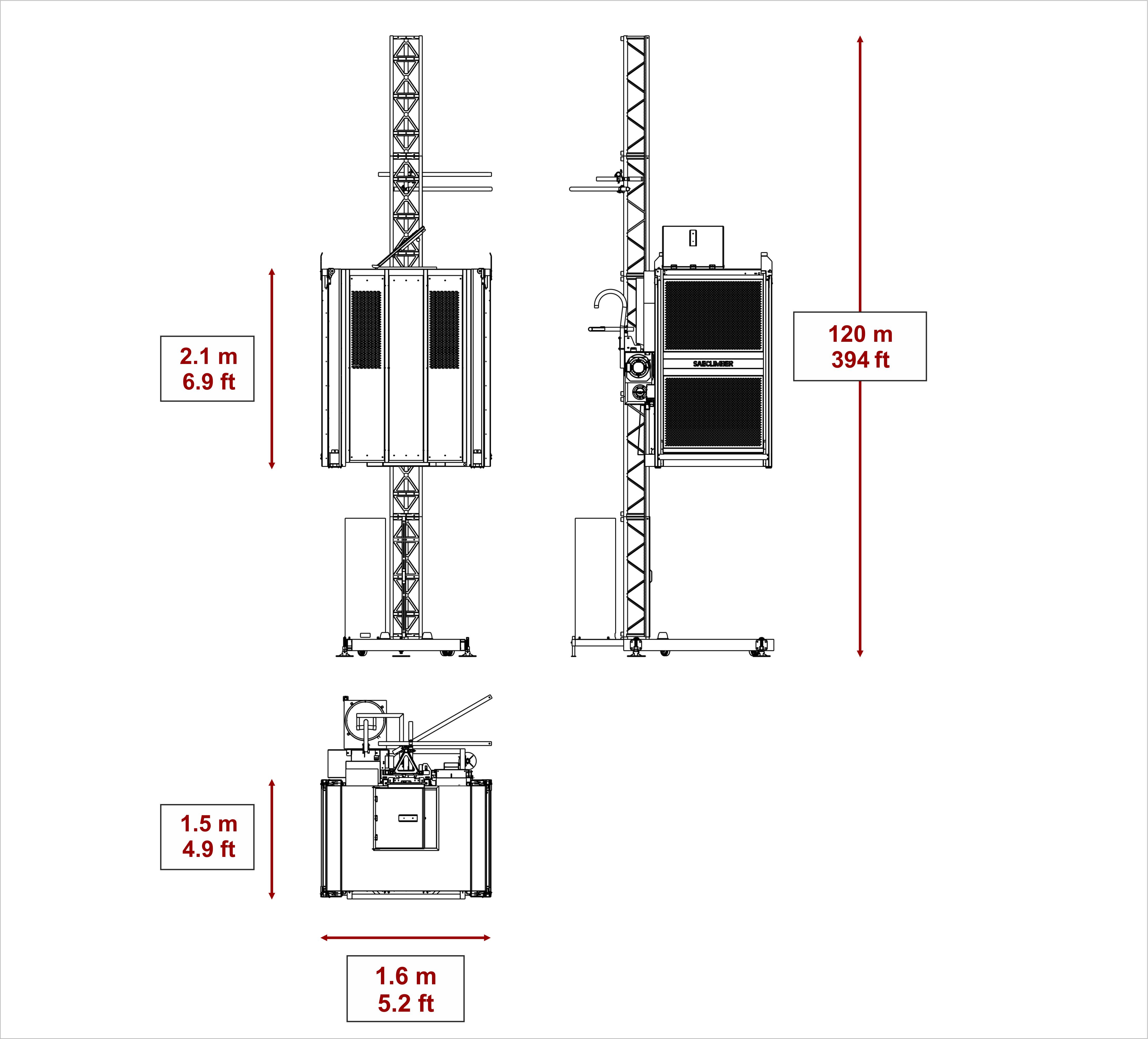

Cabin dimensions

1,6 m x 1,5 m x 2,1 m (L X W X H)

Payload

1000 kg
