Mast Climbing Work Platform
P50 - P50s

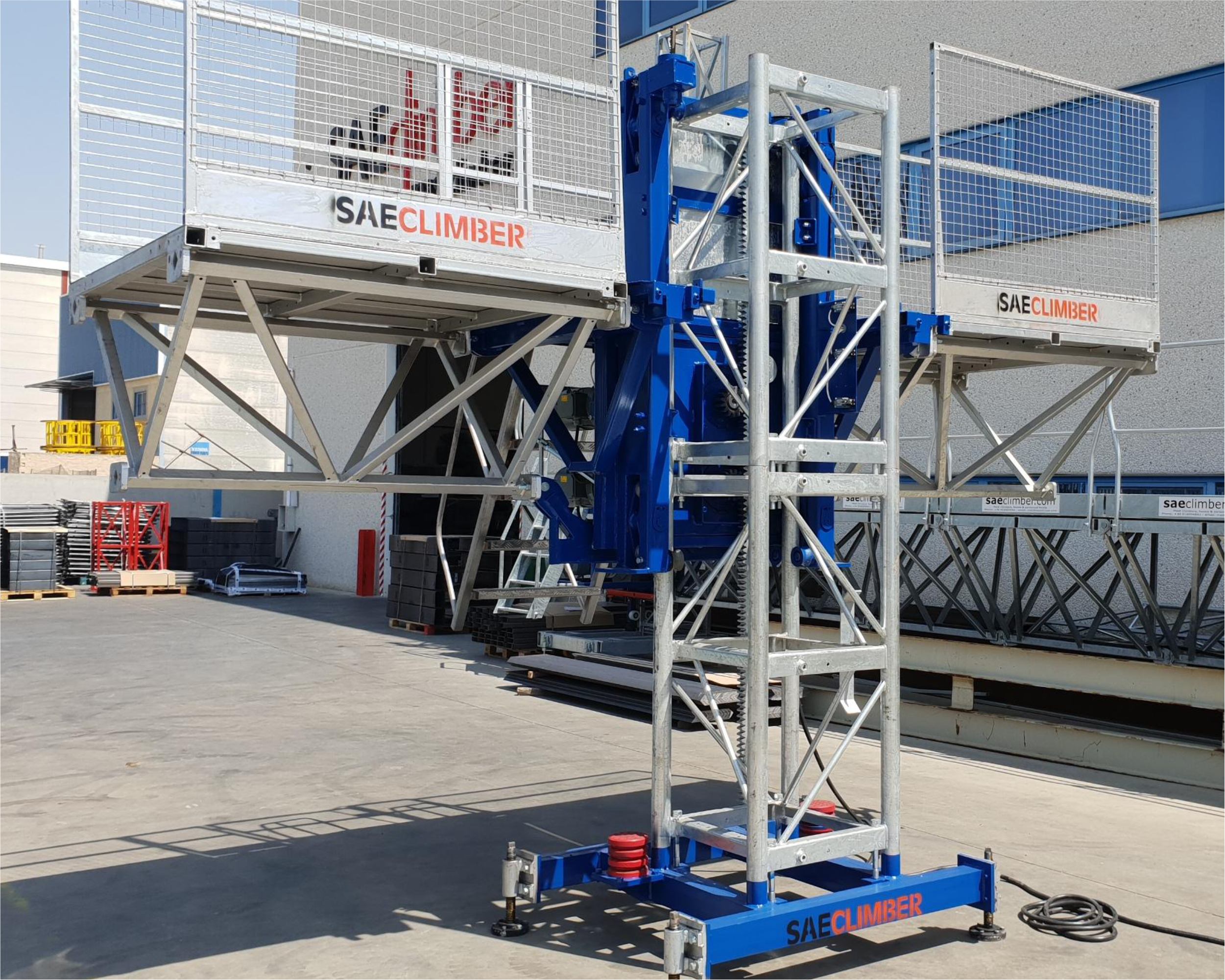

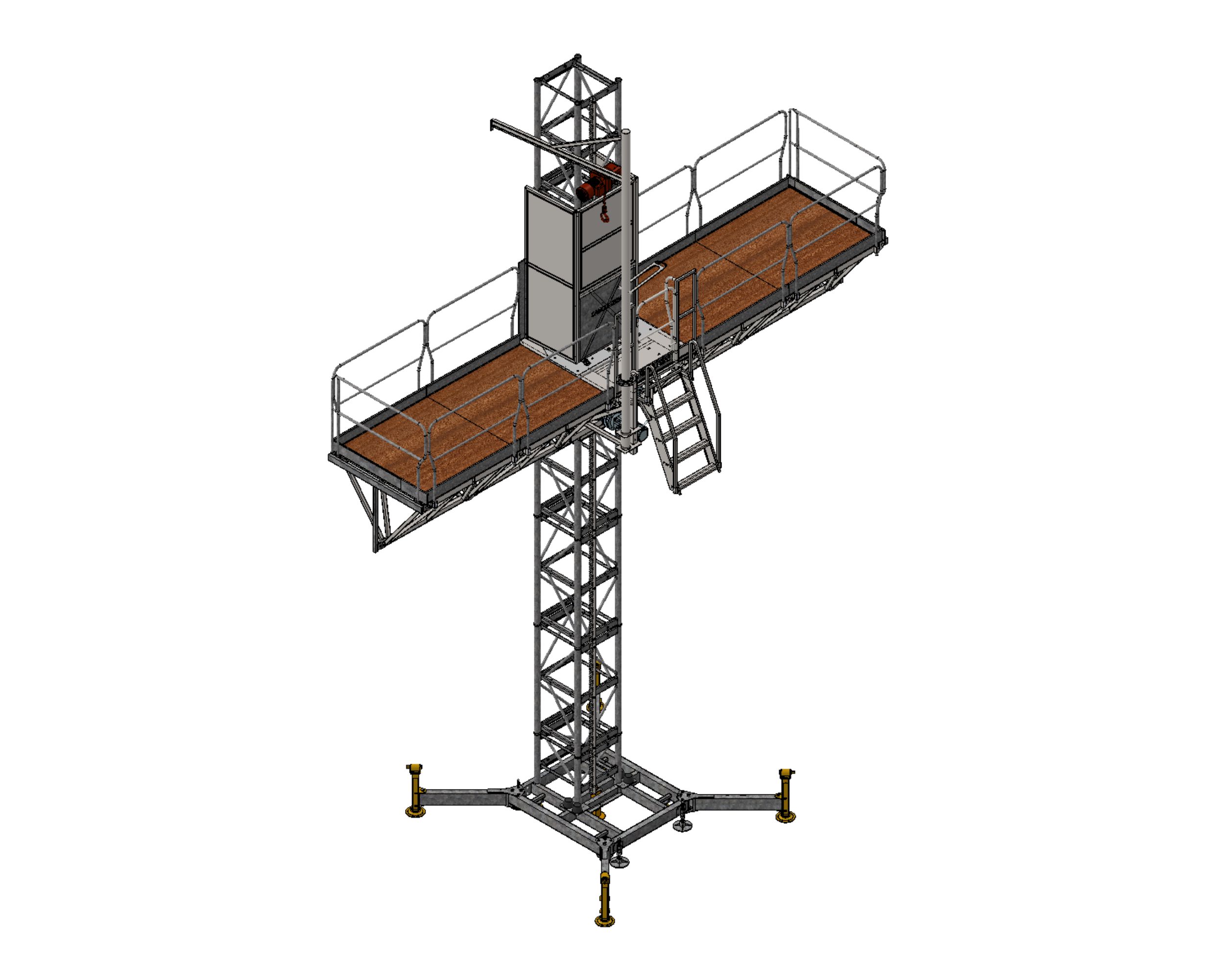

The model P50 is the biggest SAE mast climber with a 650 x 650 square mast, big dimensions, very robust and rigid with bolted rack. Ideal for very heavy works with a maximum height of 250 meters and a load capacity of 4400 Kg in single mast and 8450 Kg in twin mast. The MCWP P50S however, has even greater payload up to: 5900 kg in single mast configuration and 11400 kg in twin mast configuration. Great stability even in the single mast configuration even with 18.1 m width. Available in single or twin mast version. Available in Free Standing version with free height without anchors up to 20 meters. Also available with self propelled chassis. Mast compatible with H30 & PH30 goods hoist and transport platforms and E30 Construction hoist by SAEclimber.

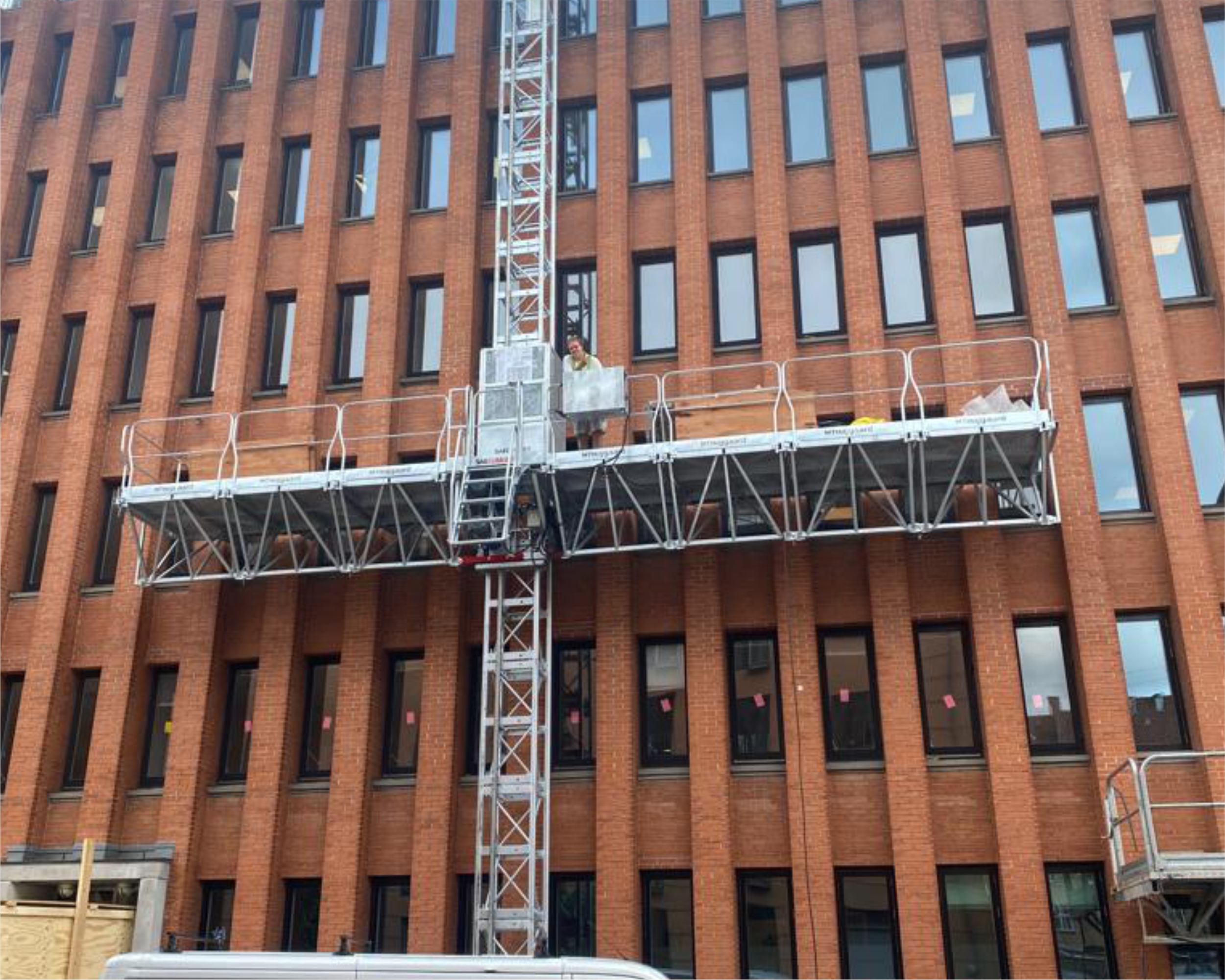

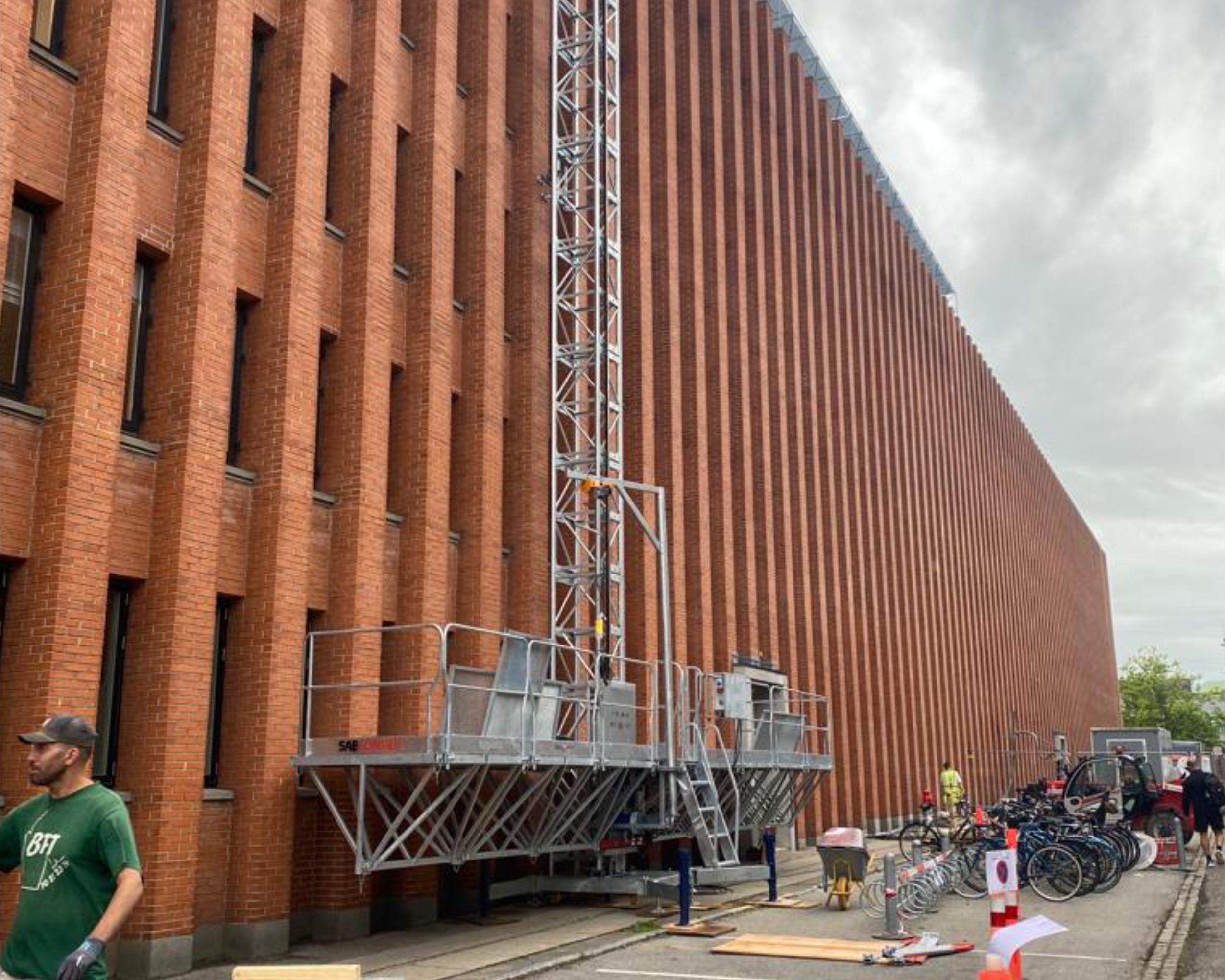

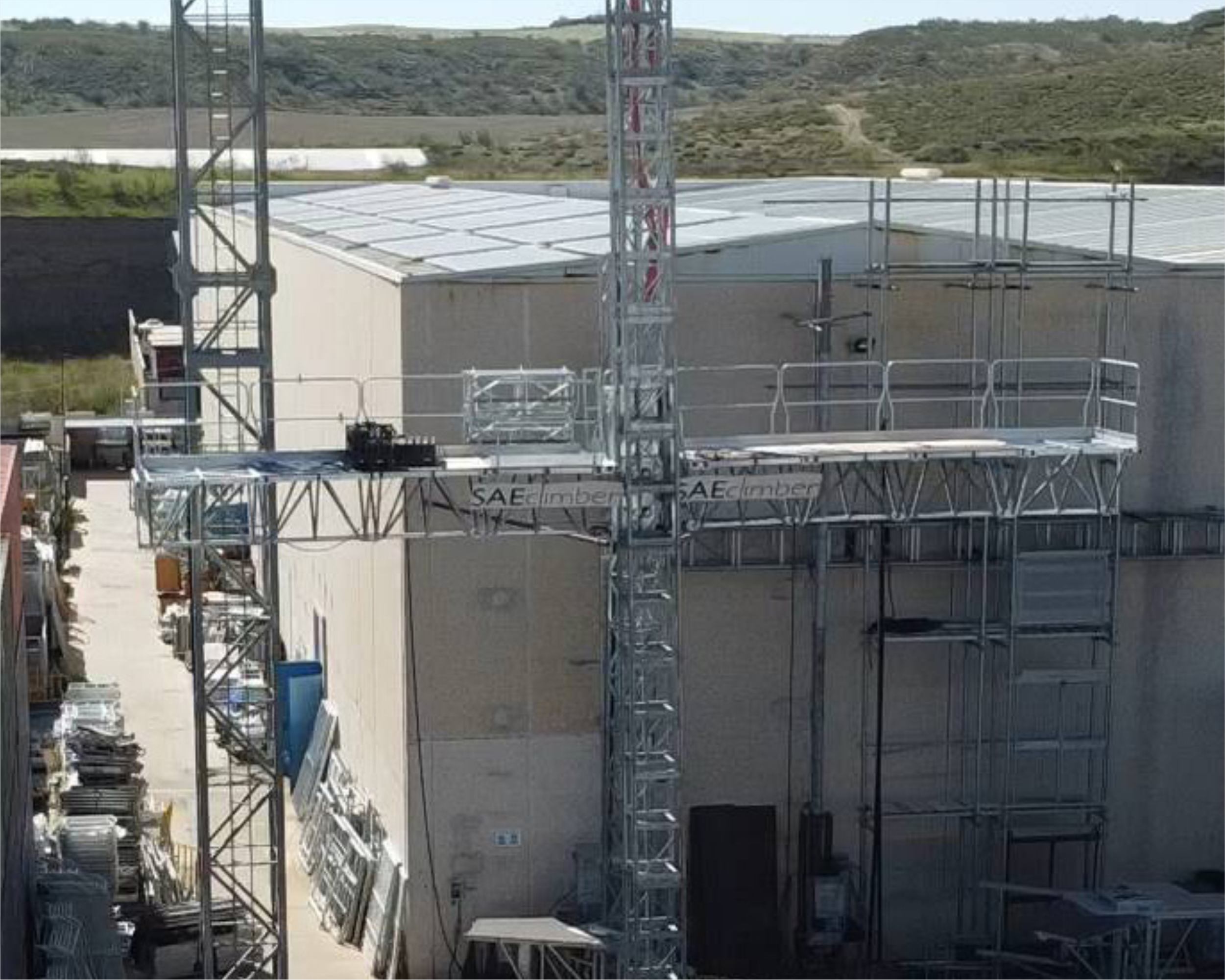

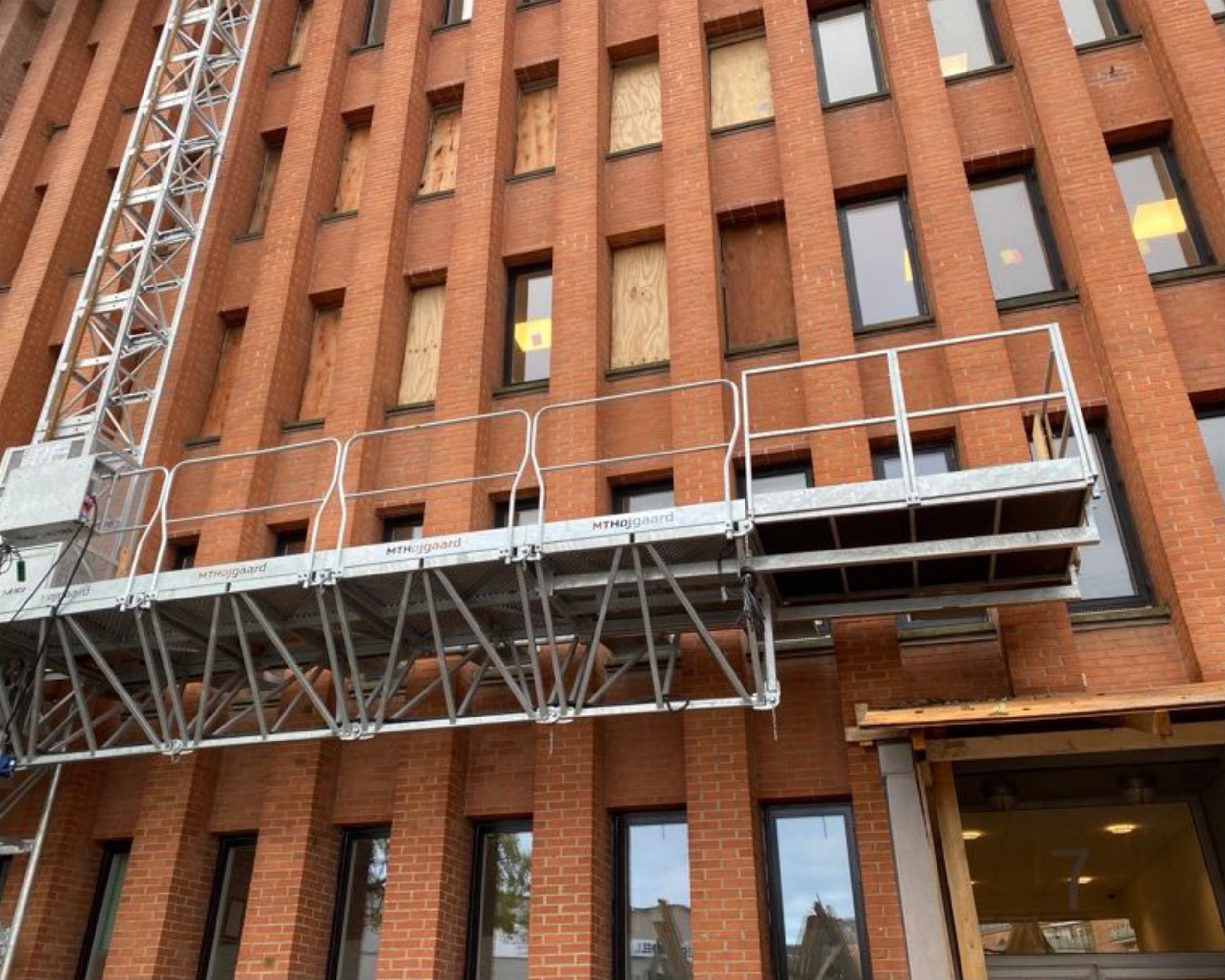

Images

Each image shows the quality, design, and technology that define our products, designed to offer safety, efficiency, and durability in every project.

Advantages

P50
Great performances.
Great stability even in sigle mast.
Possibility of large wall extensions.

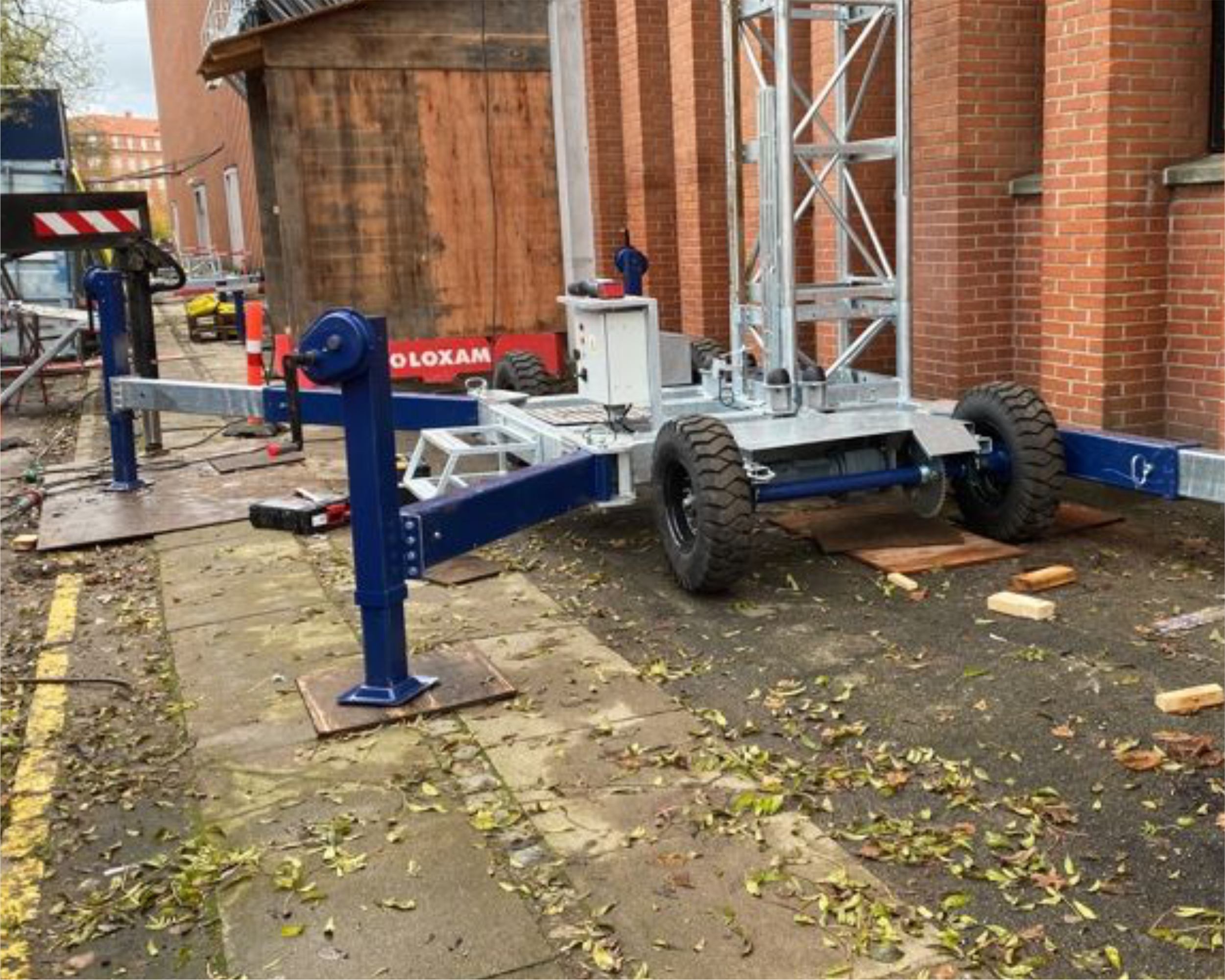

Fully autonomous machine thanks to the self propelled chassis for easy horizontal displacements.

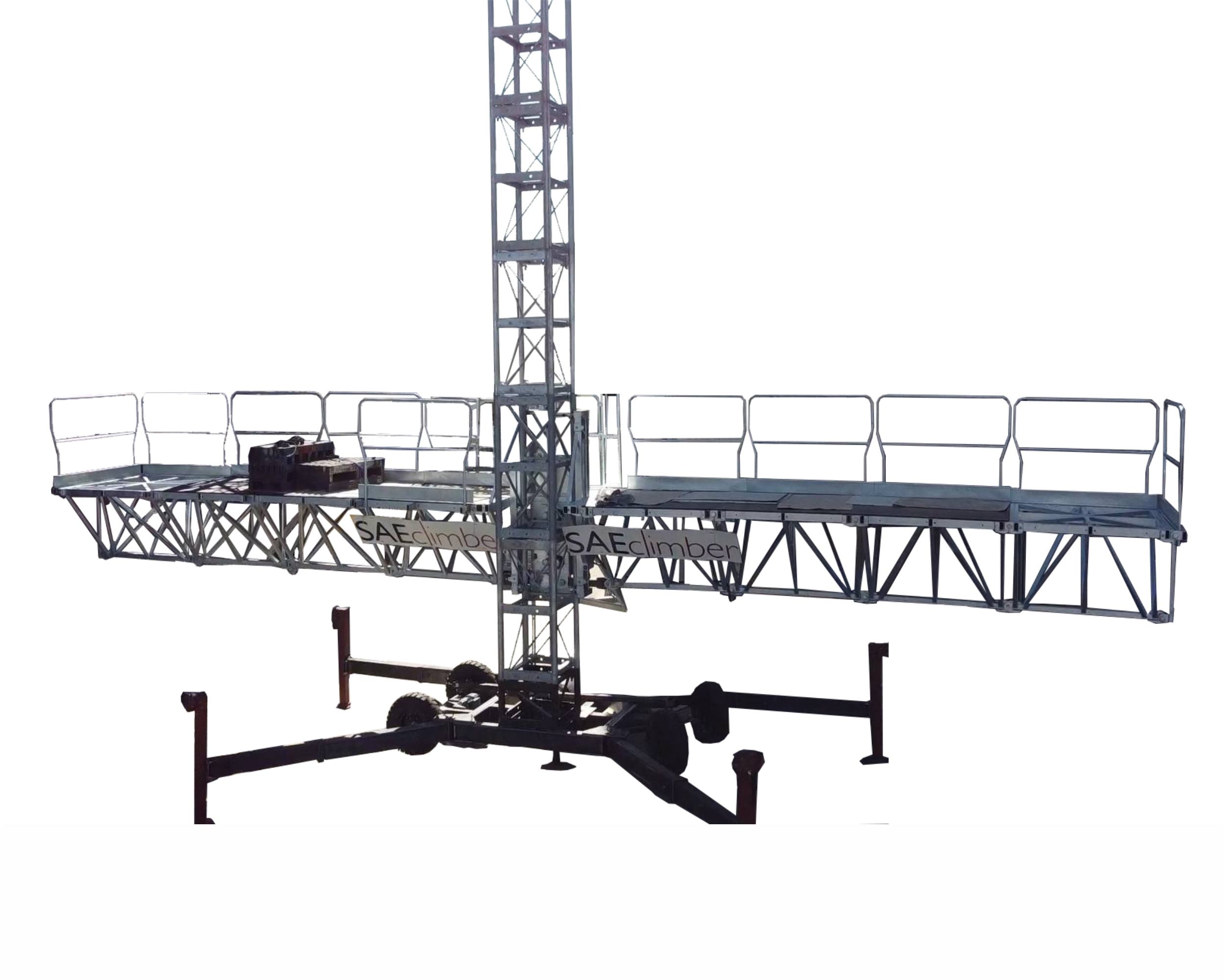

Free standing height 20 meters.
Ideal for all types of heavy works and where the mast cannot be tied up to the wall.

P50S
High performance.
Covers a large work area.
Great stability even in single-mast configuration.
Allows for large wall extensions.
Ideal for all types of medium and heavy work such as curtain walls, major renovations, face brick, demolitions, etc.
Provides higher load capacity.

Available with Industry 4.0 remote-control monitoring of malfunctions and operation.

Technical specifications

Height

250 m
(*) Greater heights available on request

Speed

P50
6 m/min

P50s
9 m/min

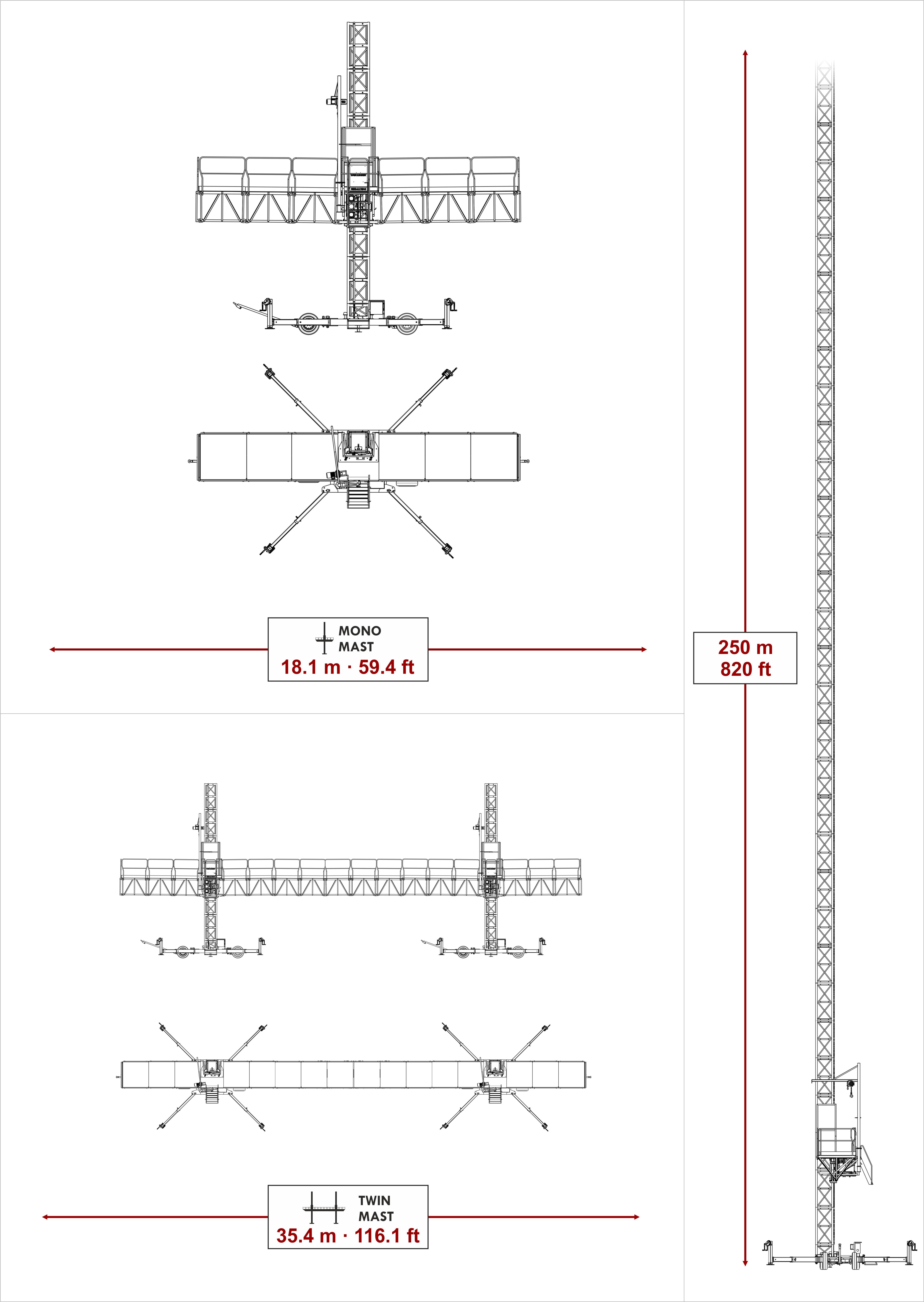

Max. length

Single mast
18,1 m

Twin mast
35,4 m

Payload

P50
Single mast- 4400 kg
Twin mast - 8450 kg

P50s
Single mast - 5900 kg
Twin mast- 11400 kg
