Material Hoist H05

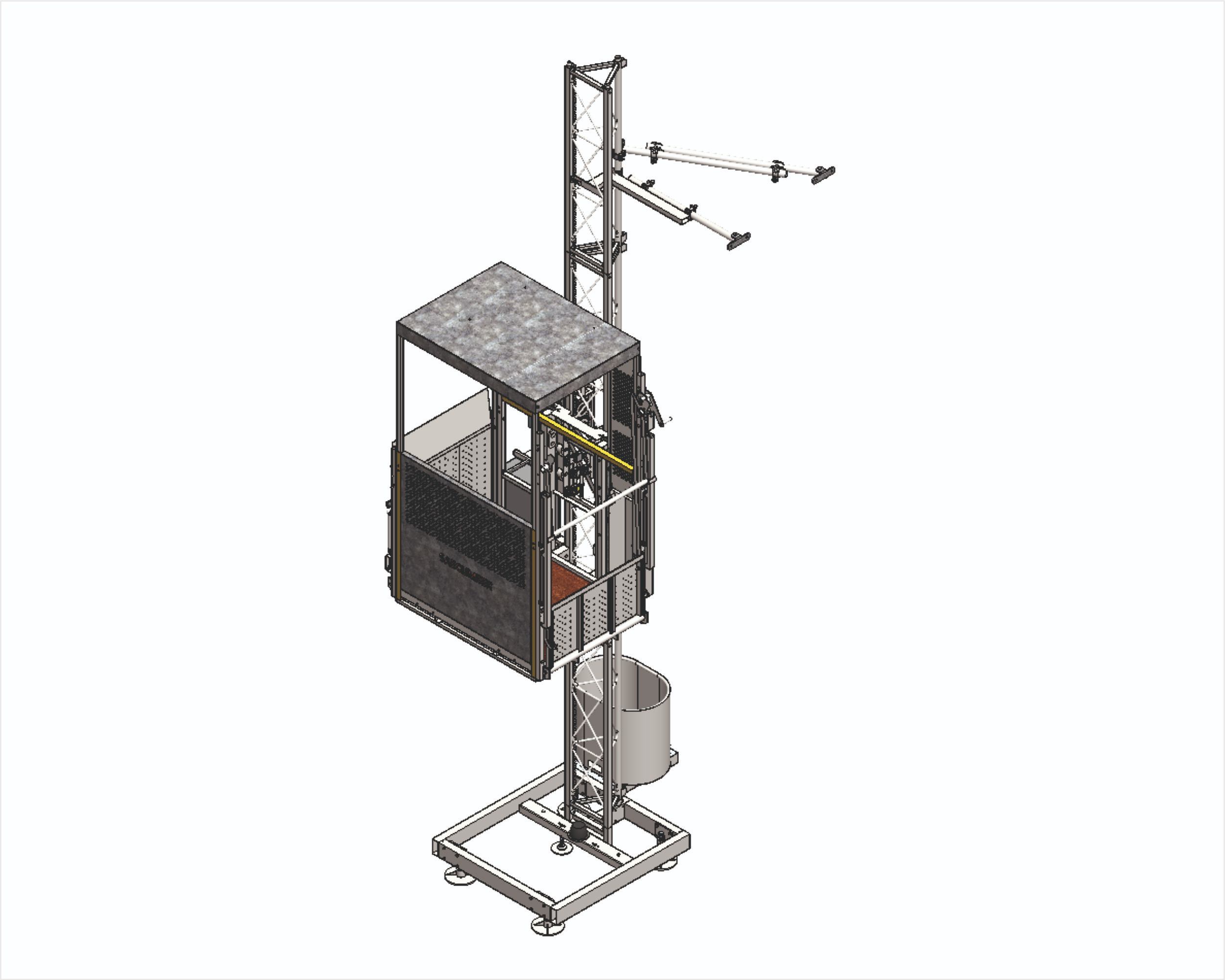

Transport Platform PH05
PH5 is a transport platform for people and materials regulated according to EN 12158 and EN 16719. Available at 12 m/min (maximum permissible speed according to regulations), or dual speed version 12/24 m/min with inverter (VFC) for mixed use transport platform/material hoist. Also available as material only hoists (model H5) with automatic control to the landings. Both versions are also available with single phase power 220 V and 3 Kw of maximum power required. The PH5 transport platform is ideal for use when there is little space available or when there is no three phase power. Another advantage of the PH5 transport platform is its minimum space required for transport with high cost savings. Mast Section is the same of E05, PH10, H10 and E10.
This machine is also available in the BATTERY-OPERATED Version where power supply is not available.

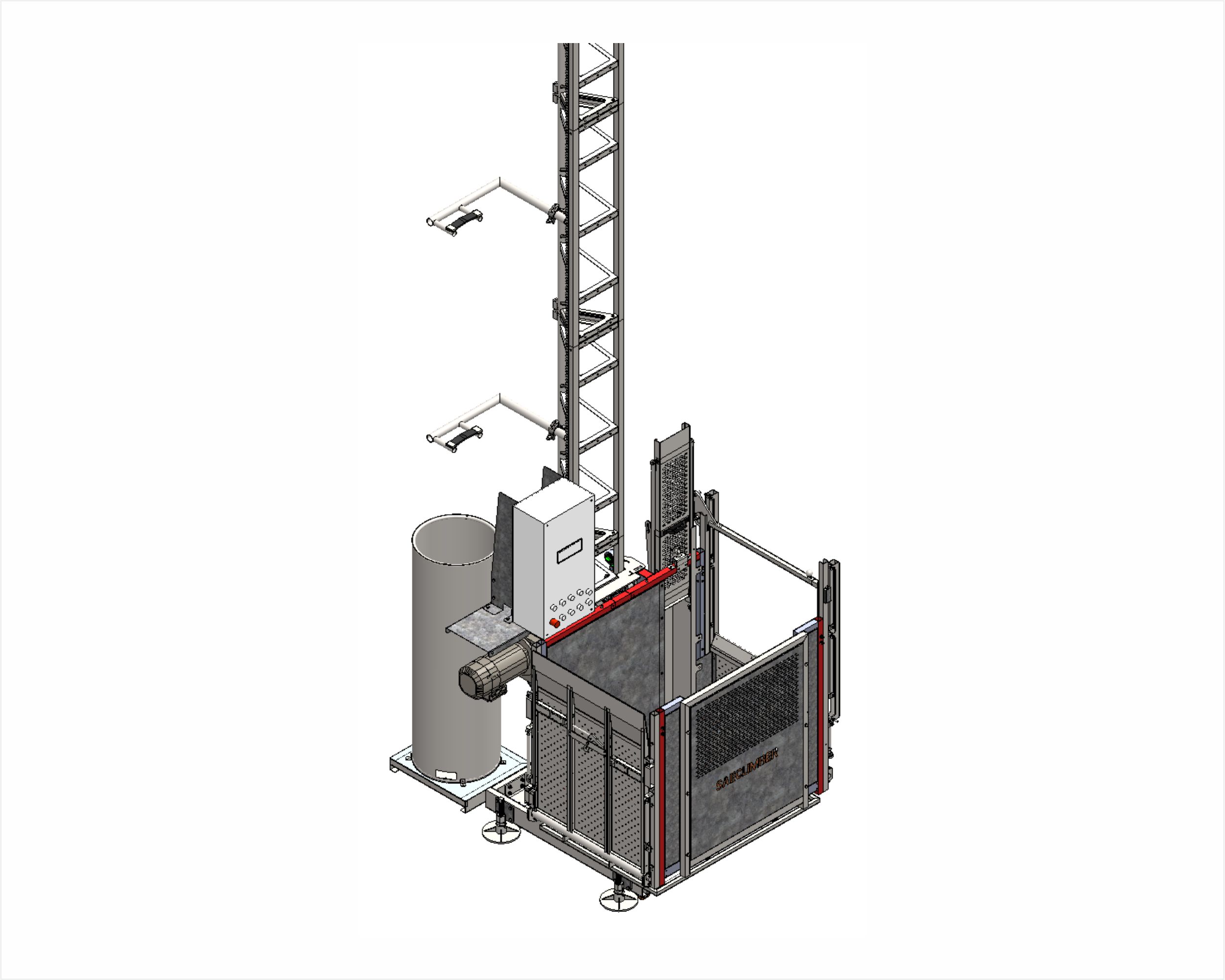

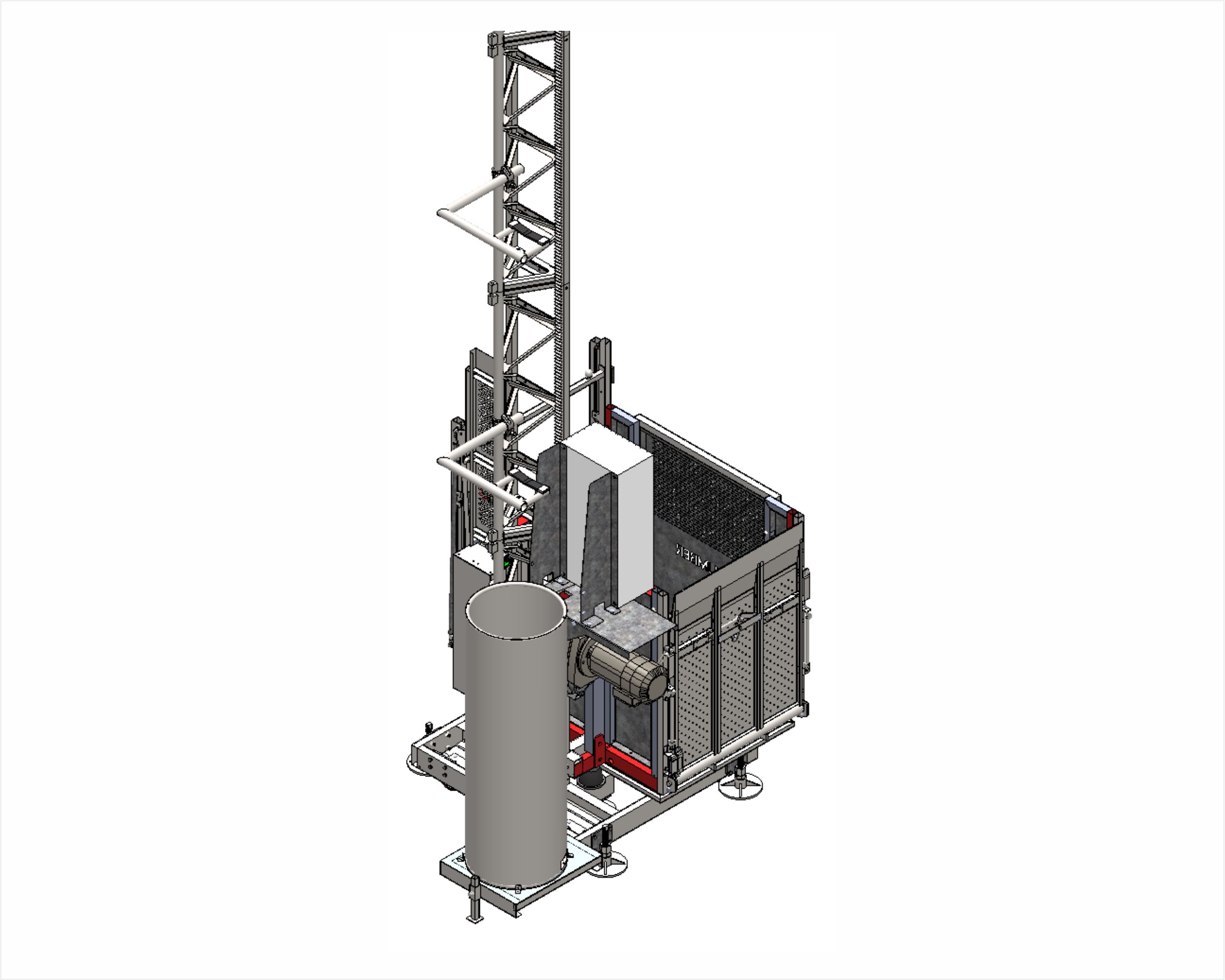

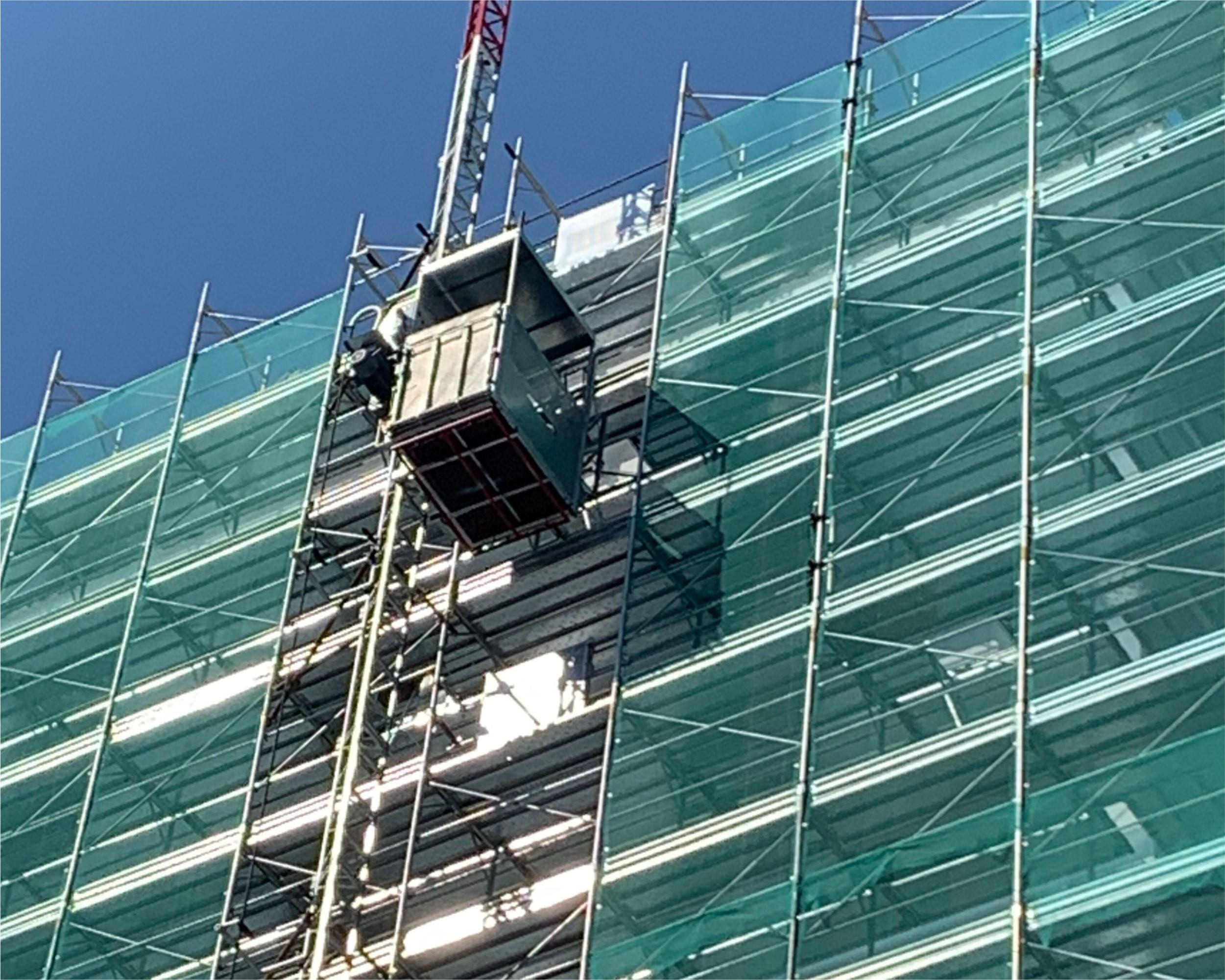

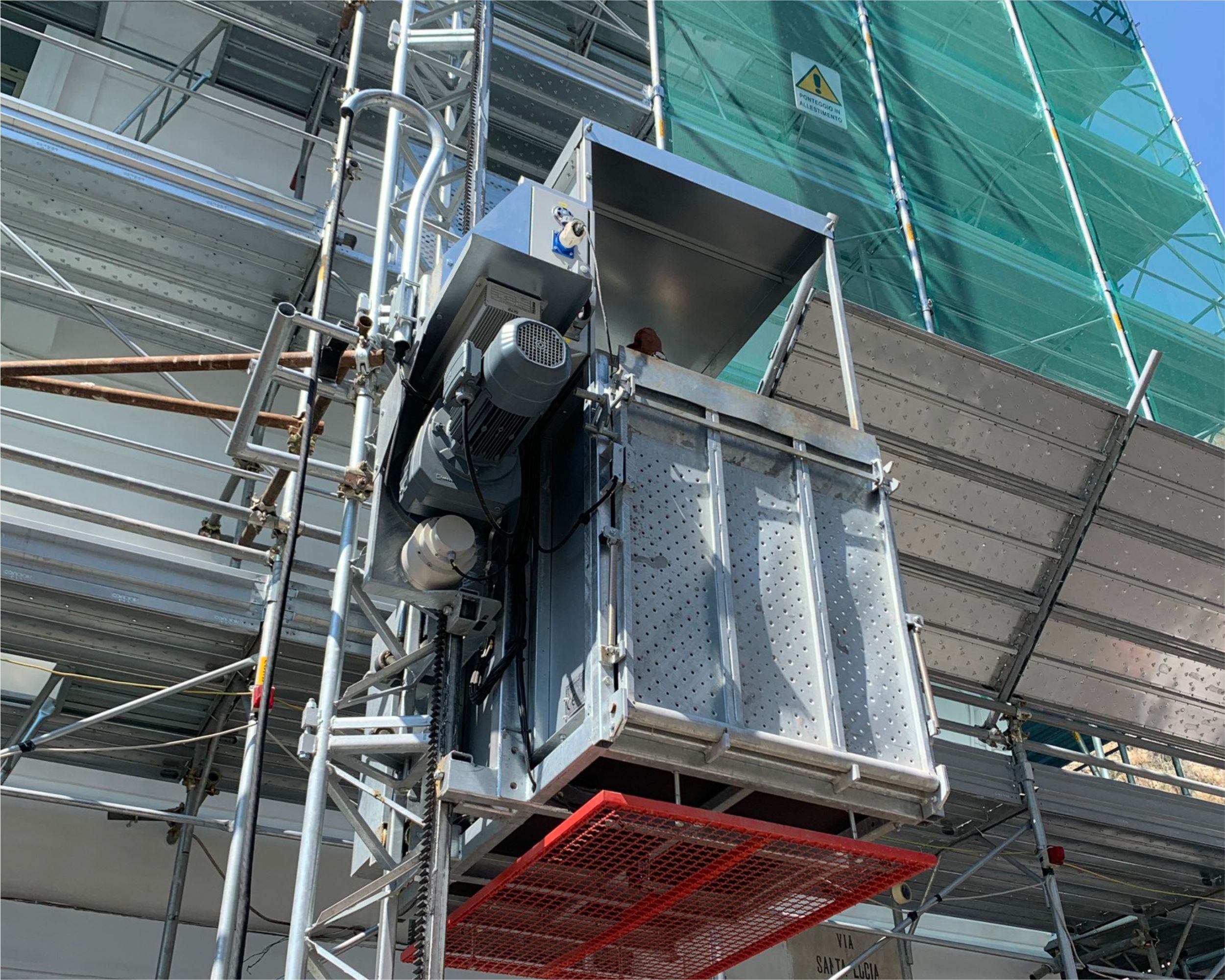

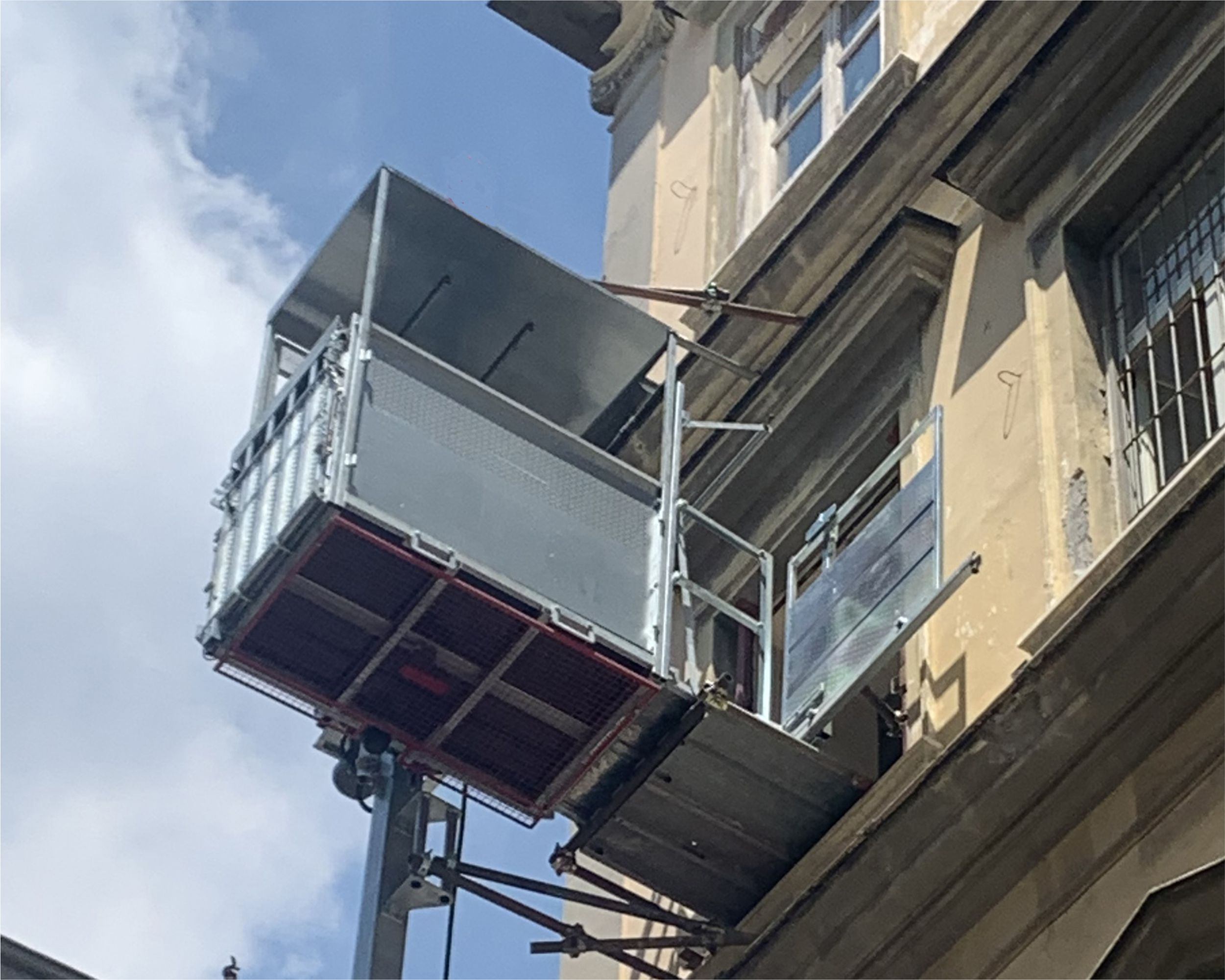

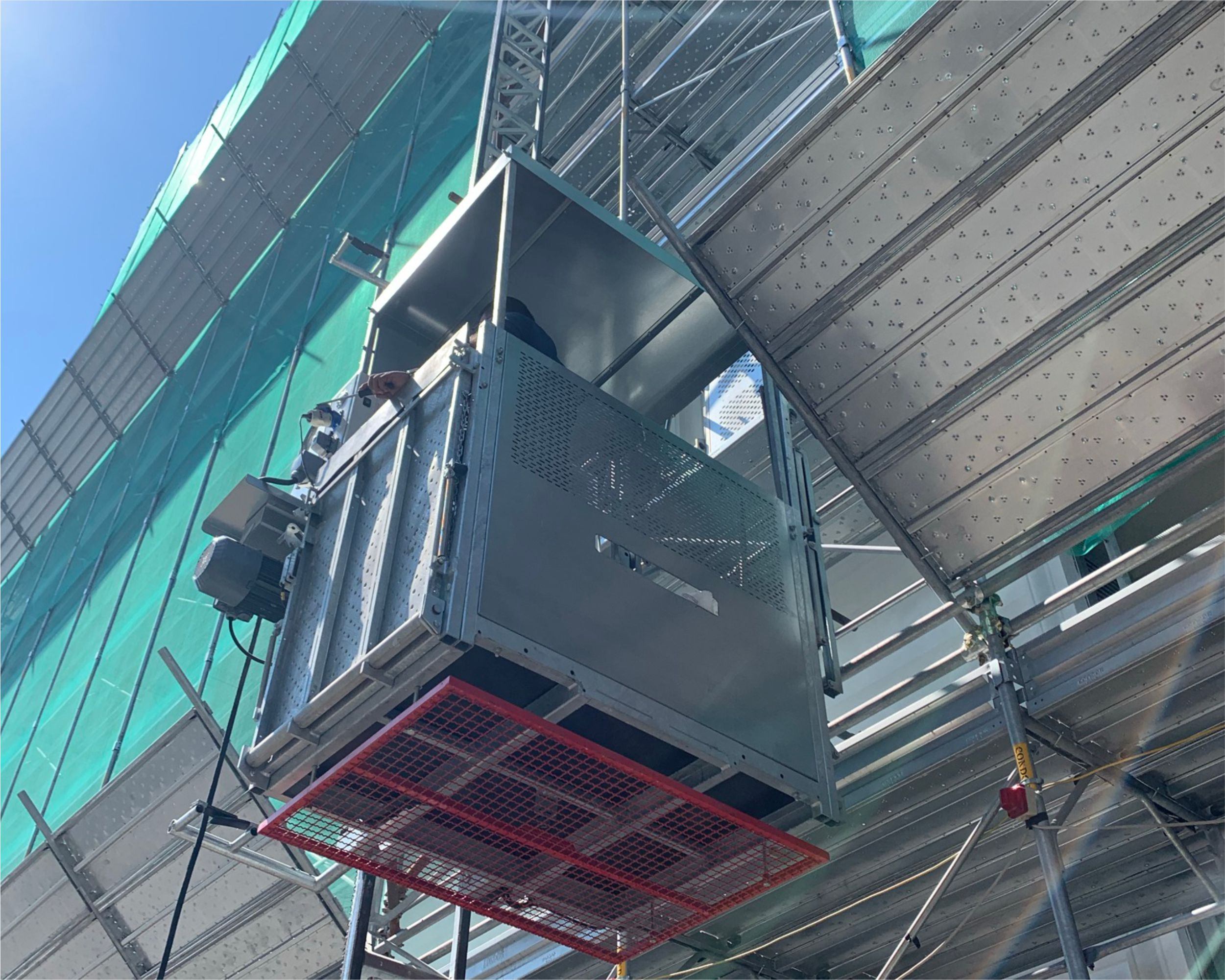

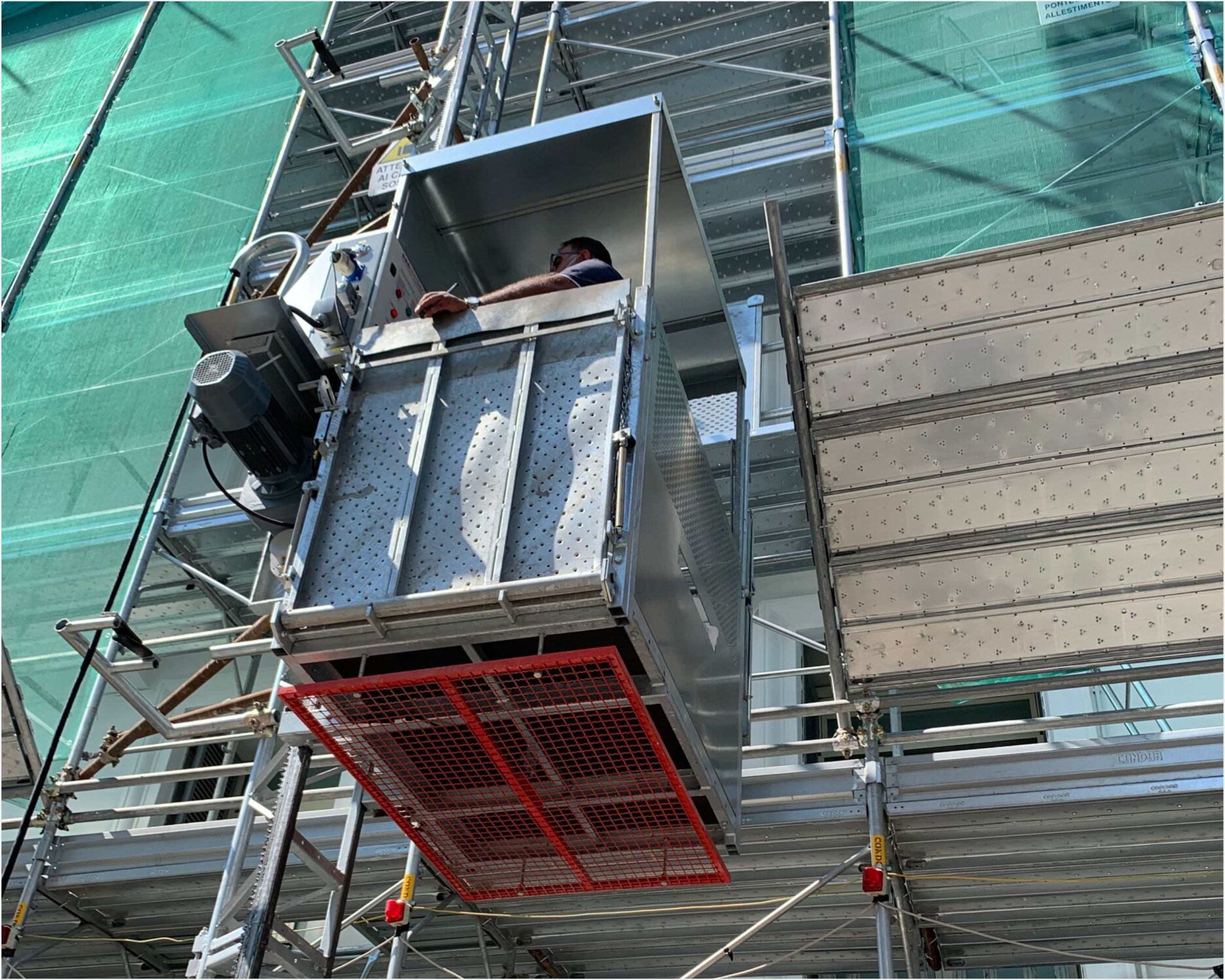

Images
Each image shows the quality, design, and technology that define our products, designed to offer safety, efficiency, and durability in every project.
Advantages
Minimal space required for transport with big cost saving.
Simple and reliable.
Fast in assembly.

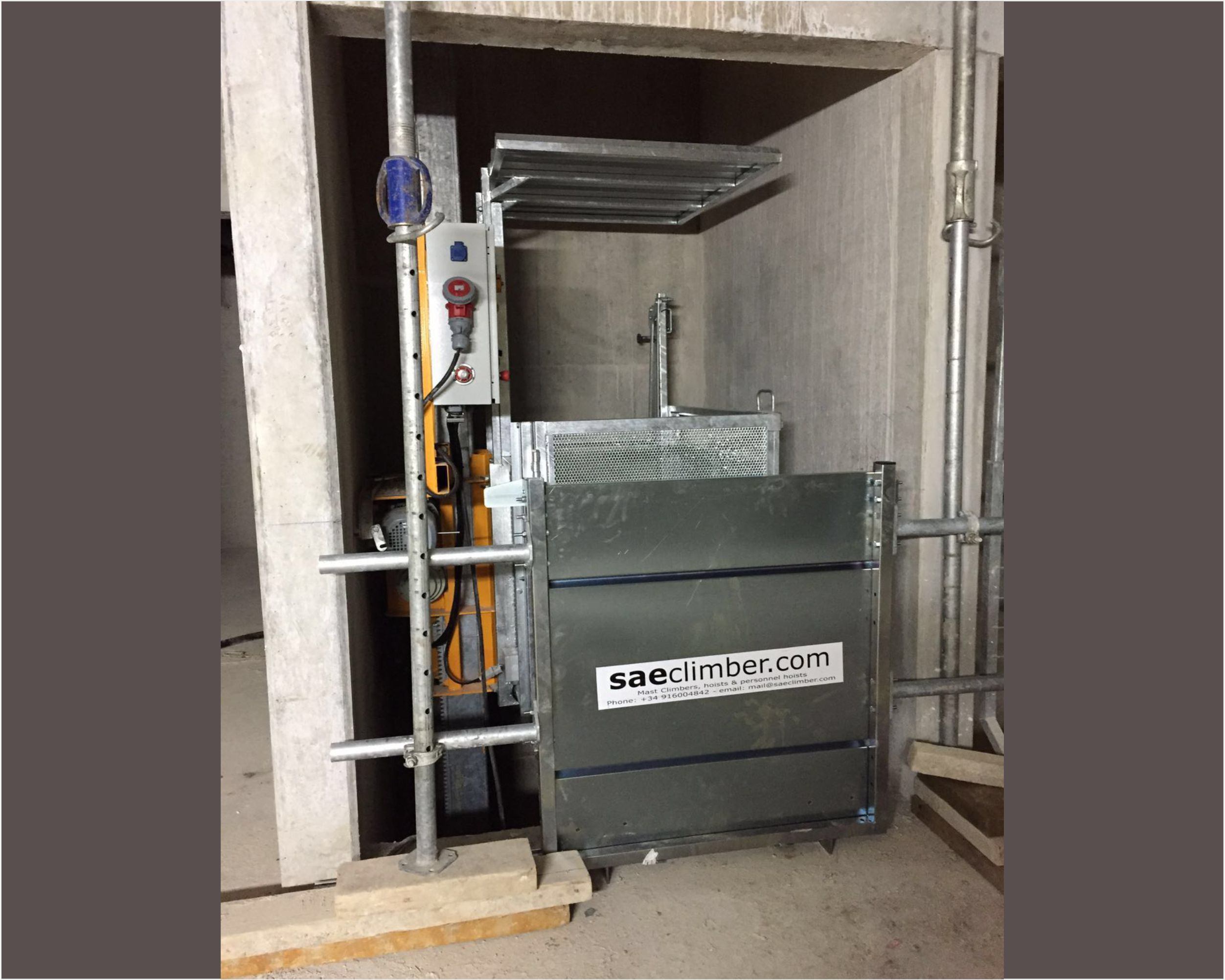

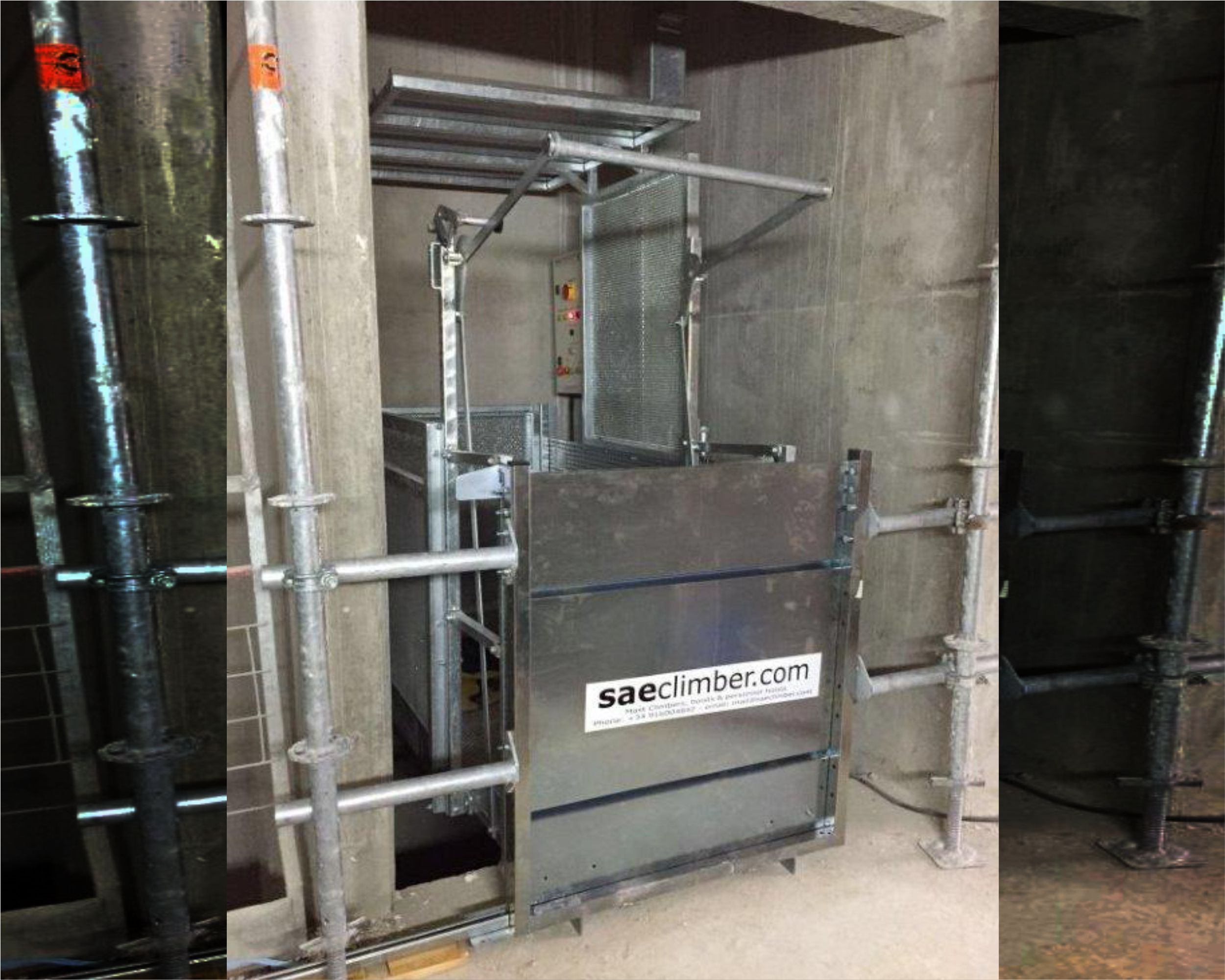

Ideal for mounting in elevator shafts or in narrow spaces.
Single phase power version available.
Safety Features
Drive Unit
First-class self-braking gear motors.
First-class inverter (for VFC versions).
Independent emergency parachute brake (CE certified).
Overload control (load cell detection) with digital control.
Mechanical anti-tilt safety lock.
Machine
Safety limit switch for ascent and descent.
Emergency limit switch for ascent and descent.
Inductive safety limit switch to detect mast presence.
Safety limit switch and power cable tear-off device (to prevent cable breakage).
Electromechanical or inductive safety limit switch for cabin doors (depending on version).
Magnetothermal protections and amperometric differential switches.
Terminal mast with half rack to prevent tipping.
Cabin
Double movement cabin door opening to prevent accidental opening.
Foldable platform for assembly with protective handrails and safety limit switch.
Cabin protection roof (for transport).
Safety panel for column protection.
Visual fault diagnosis.
Device for manual descent in the event of a power failure.
Automatic safety stop at a height of 3 m with double impulse for descent.
Safety net under basket (only for PH5 and PH10).
Controls
Remote control for drop test.
Remote control for assembly (only for goods lifts).
Floor stop control system with wireless cards (wireless system).
Light-type electrical cable. No control cables required thanks to the wireless system.
Digital self-diagnostic system.
Digital machine control system.
Base · Base enclosure

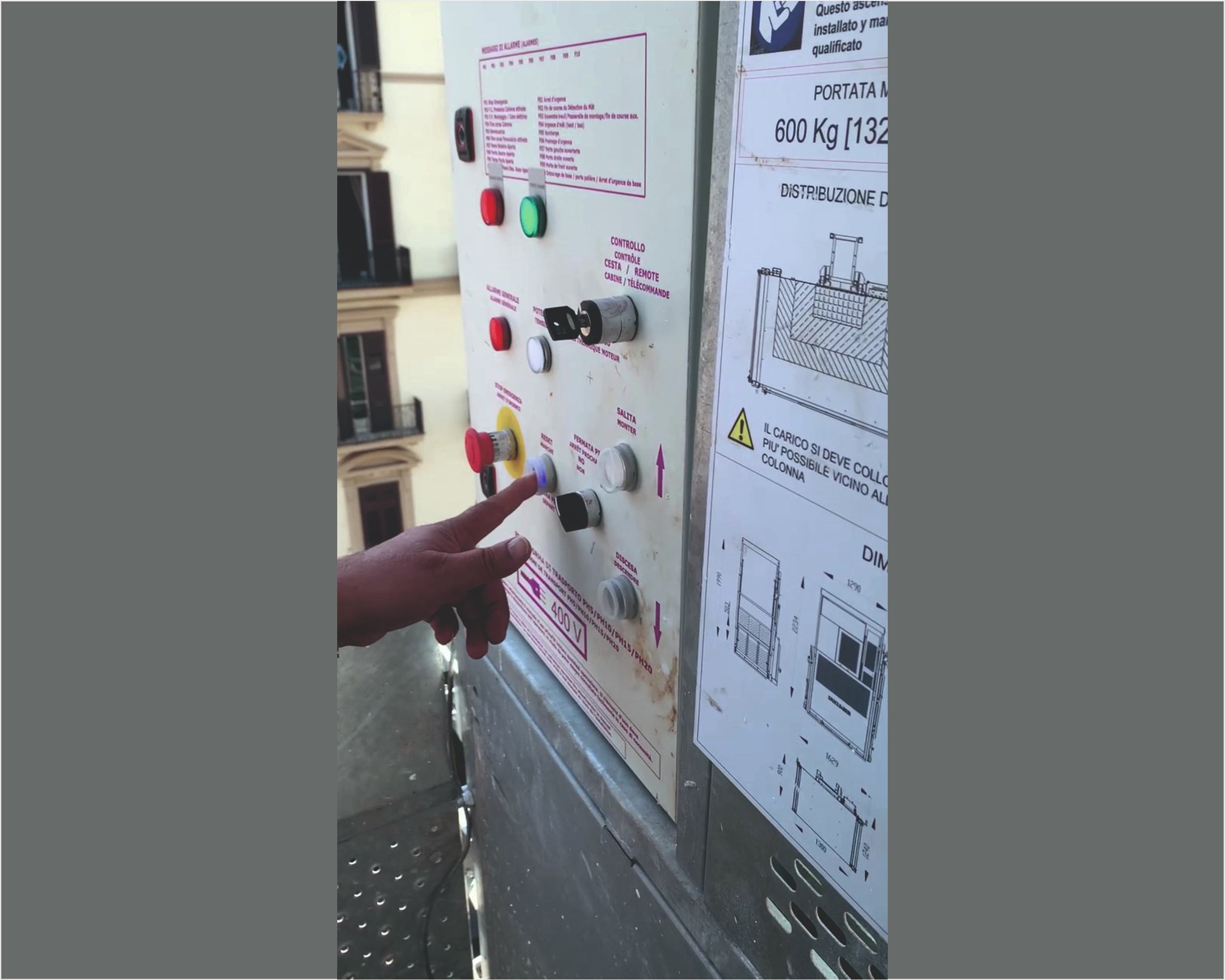

Base panel with floor display and automatic cabin dispatch to the desired floor.
Base enclosure access door safety interlock.
Base chassis with certified rubber shock absorbers.
Cable reel or cable trolley.
Landings on floors
Landing doors on upper and lower floors, equipped with safety interlock.
Cabin call panel on floors.
Machine durability
Hot-dip galvanised parts, including the entire cabin, for a long machine service life.
Available with Industry 4.0 remote control for faults and operation
Technical Features

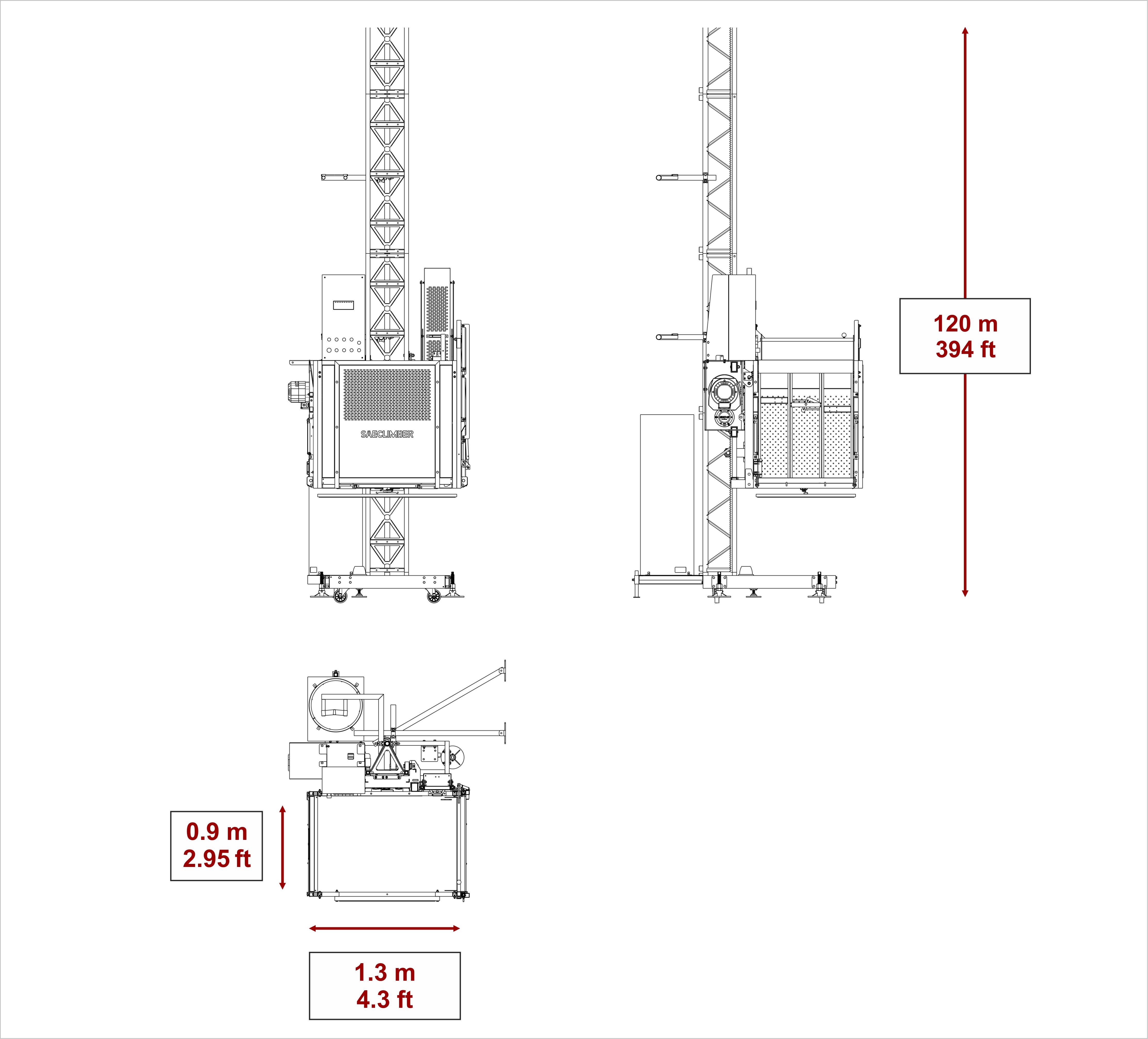

Height
120 m
(*) Greater heights available on request
Speed
12 - 24 m/min
Cabin dimensions
1,3 x 0,9 m (L X W)
Payload
600 kg
