Mast Climbing Work Platform
P45 - P45s

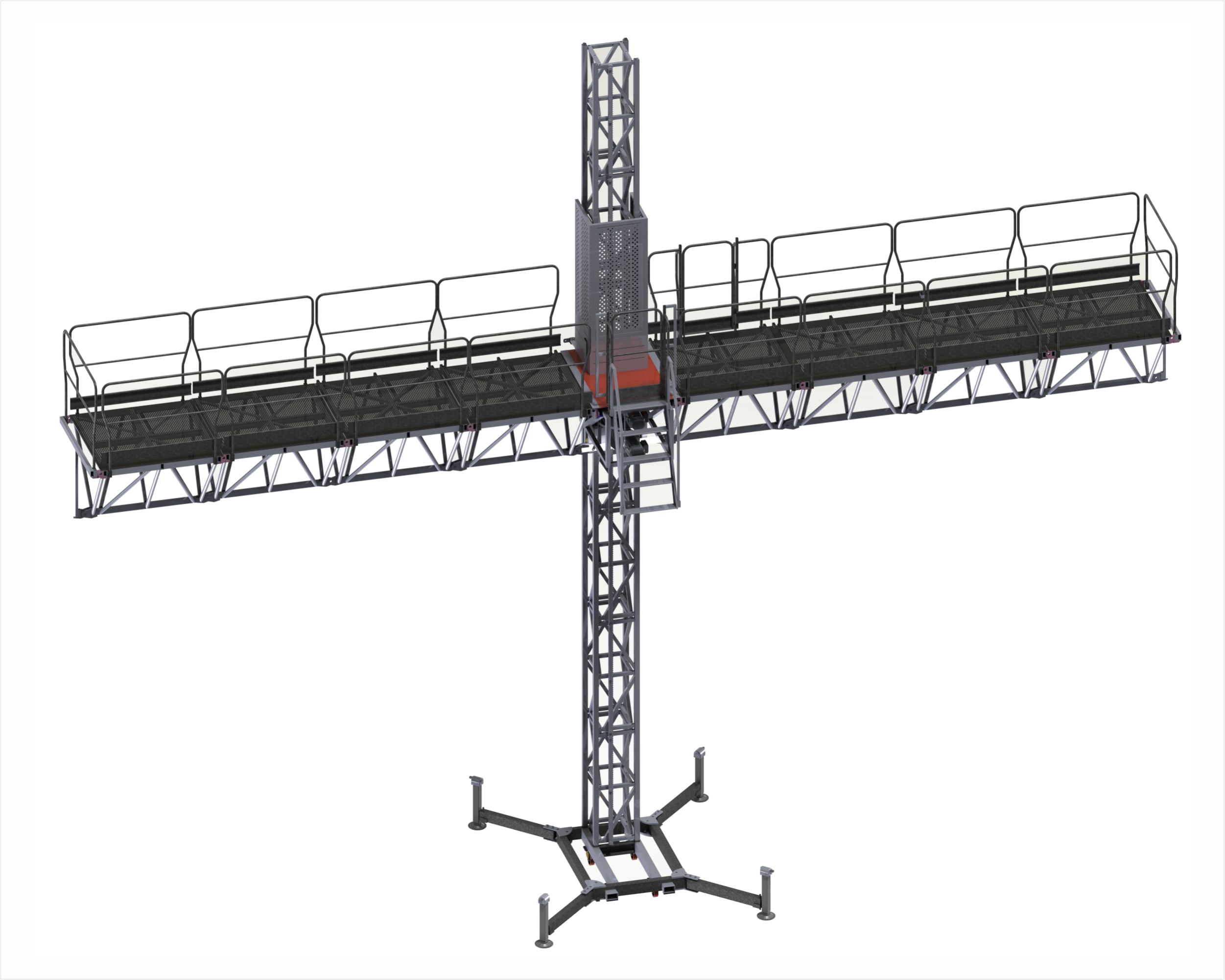

The model P45 is a mast climber with a square mast, very robust and rigid with bolted rack. It is perfect for heavy works with a maximum height of 200 meters and a load capacity of 4400 Kg in single mast and 8450 Kg in twin mast. Great stability even in the single mast configuration even with 16.2 m width. Available in single or twin mast version. Available in Free Standing version with height without anchors up to 18 meters. Also available with self propelled chassis. Mast compatible with H20 & PH20 only goods hoist and transport platforms and E20 Construction hoist by SAEclimber.

P45S:
The SAEclimber P45S is the enhanced edition of SAEclimber’s heavy-duty range of Mast Climbers. It features three motors and increases the standard payload capacity of our P45 Mast Climber. This MCWP has been specially developed to meet and exceed the needs of our clients, using a robust section with a bolted rack and providing the equipment with great capacity: 5,900 kg in single-mast configuration and 11,400 kg in twin-mast configuration.

This unique piece of engineering is the perfect choice for the most demanding and large-scale construction projects. Both versions have mast compatibility with the range of material hoists and transport platforms, as well as construction hoists from SAEclimber: H20, PH20 and E20.

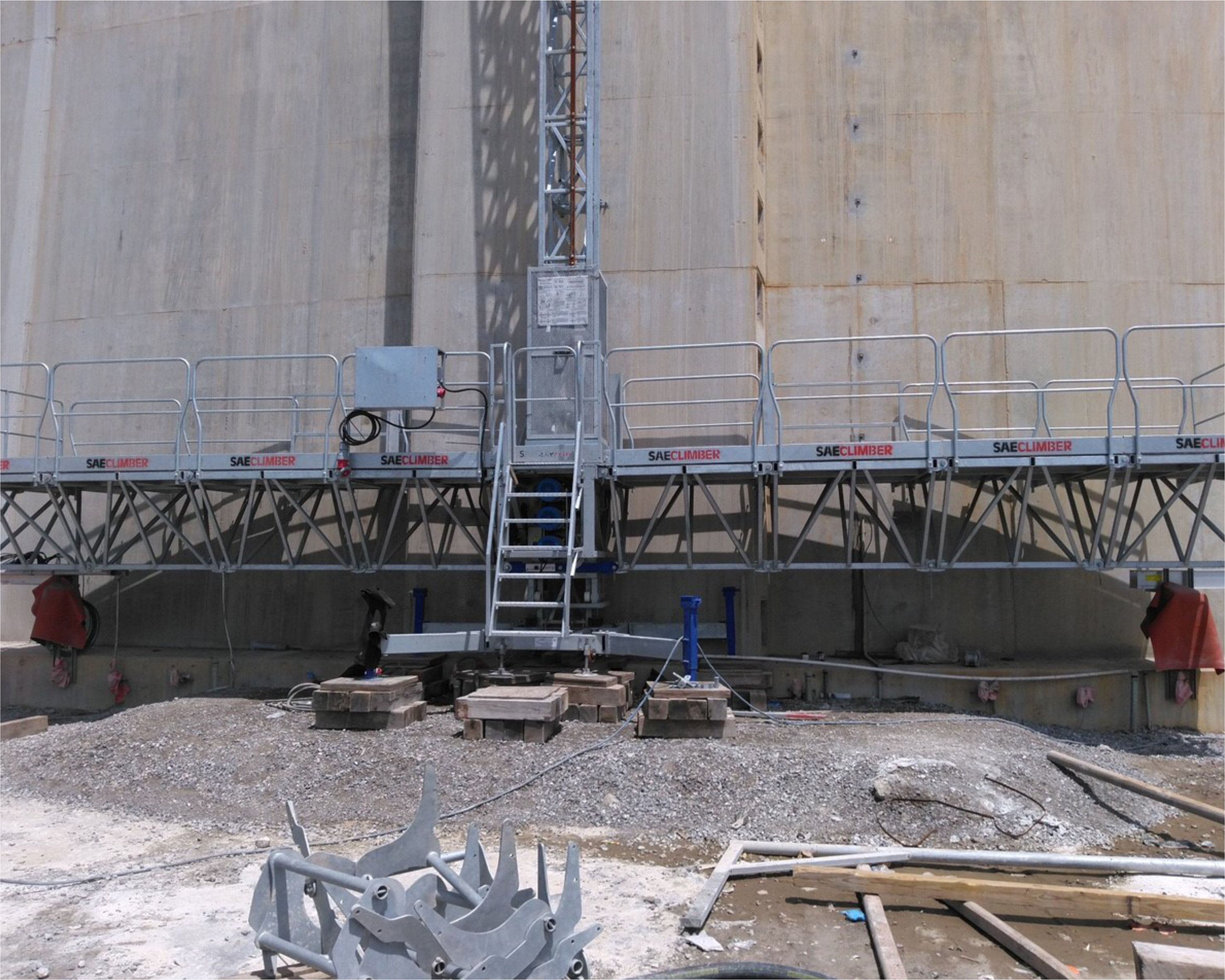

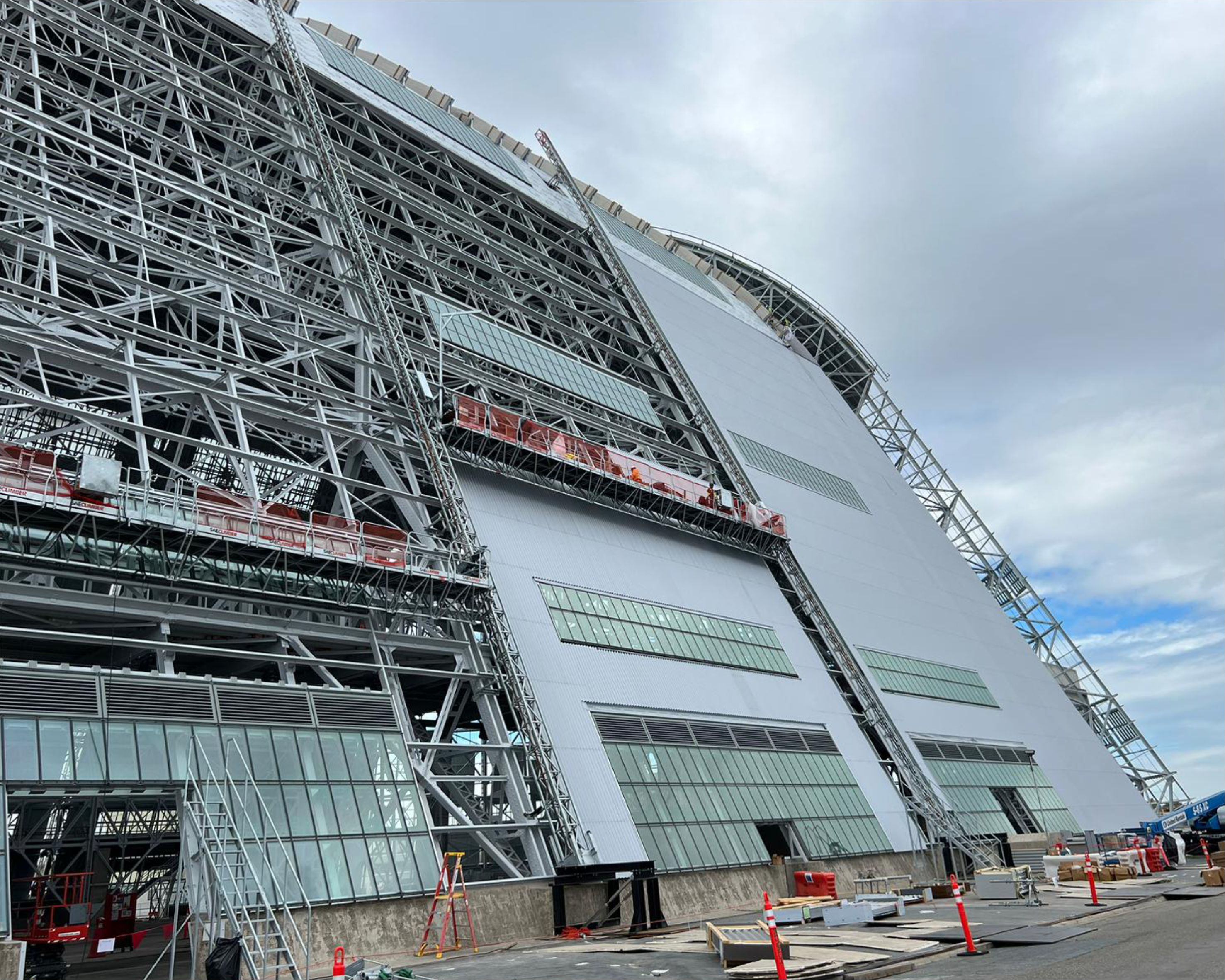

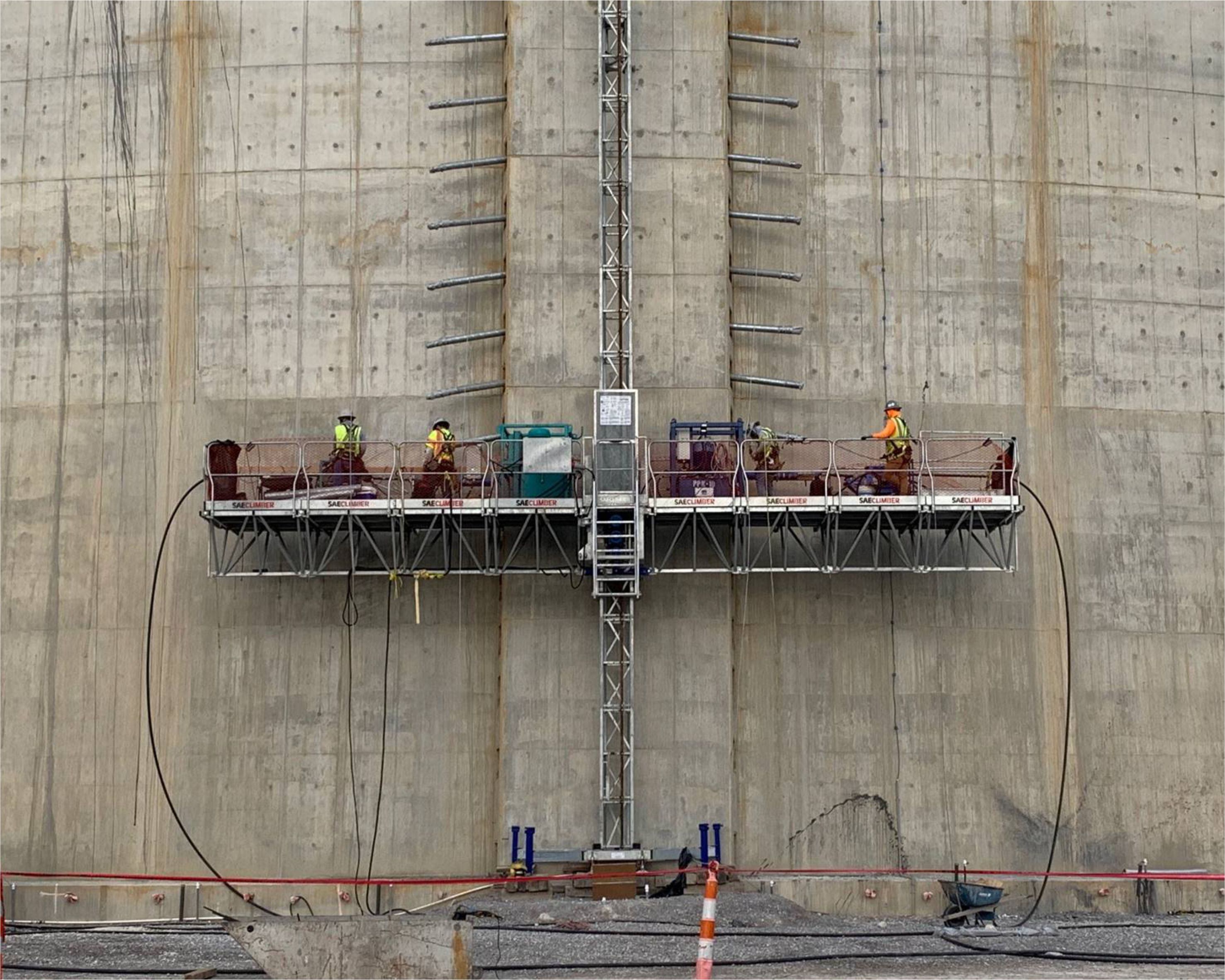

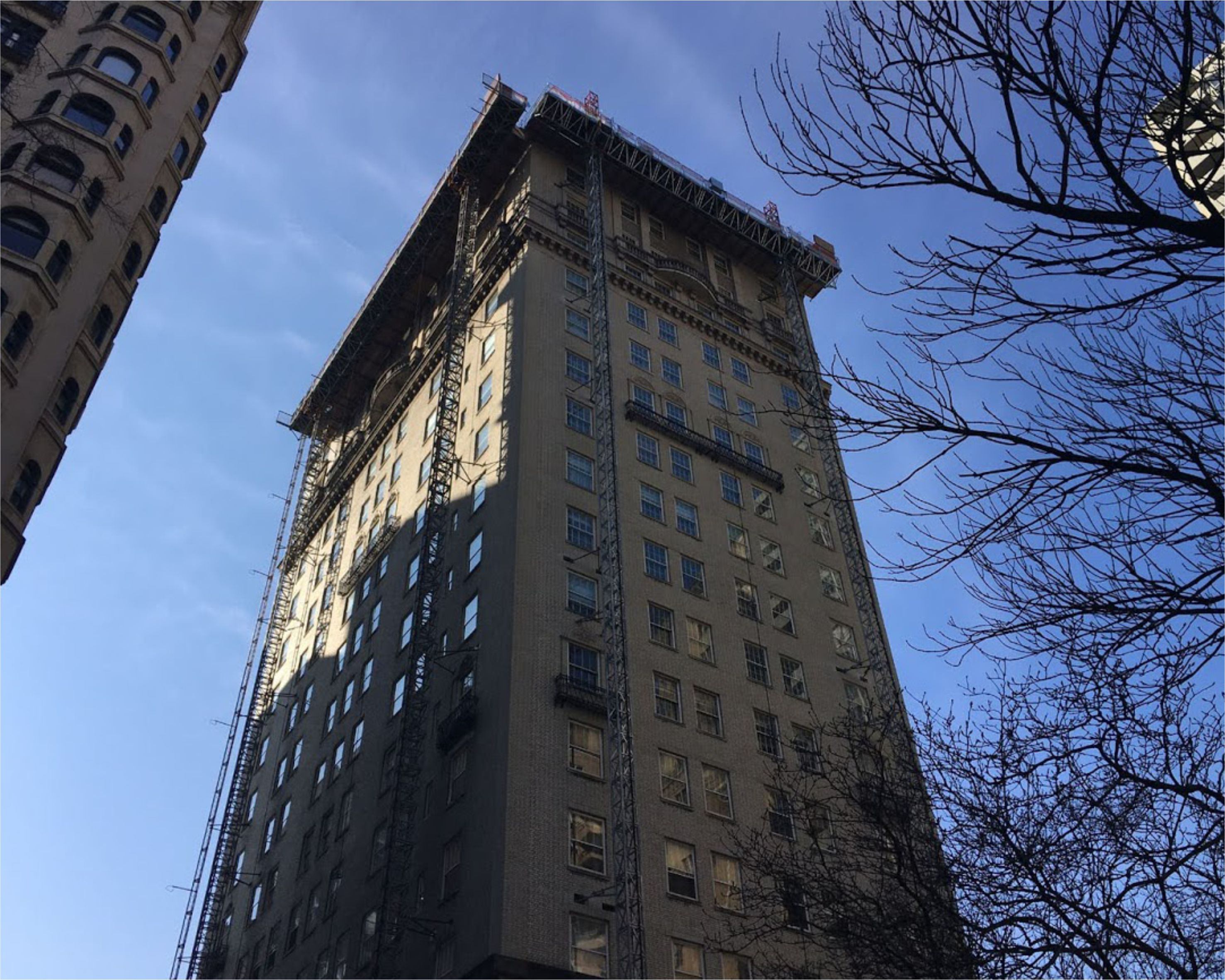

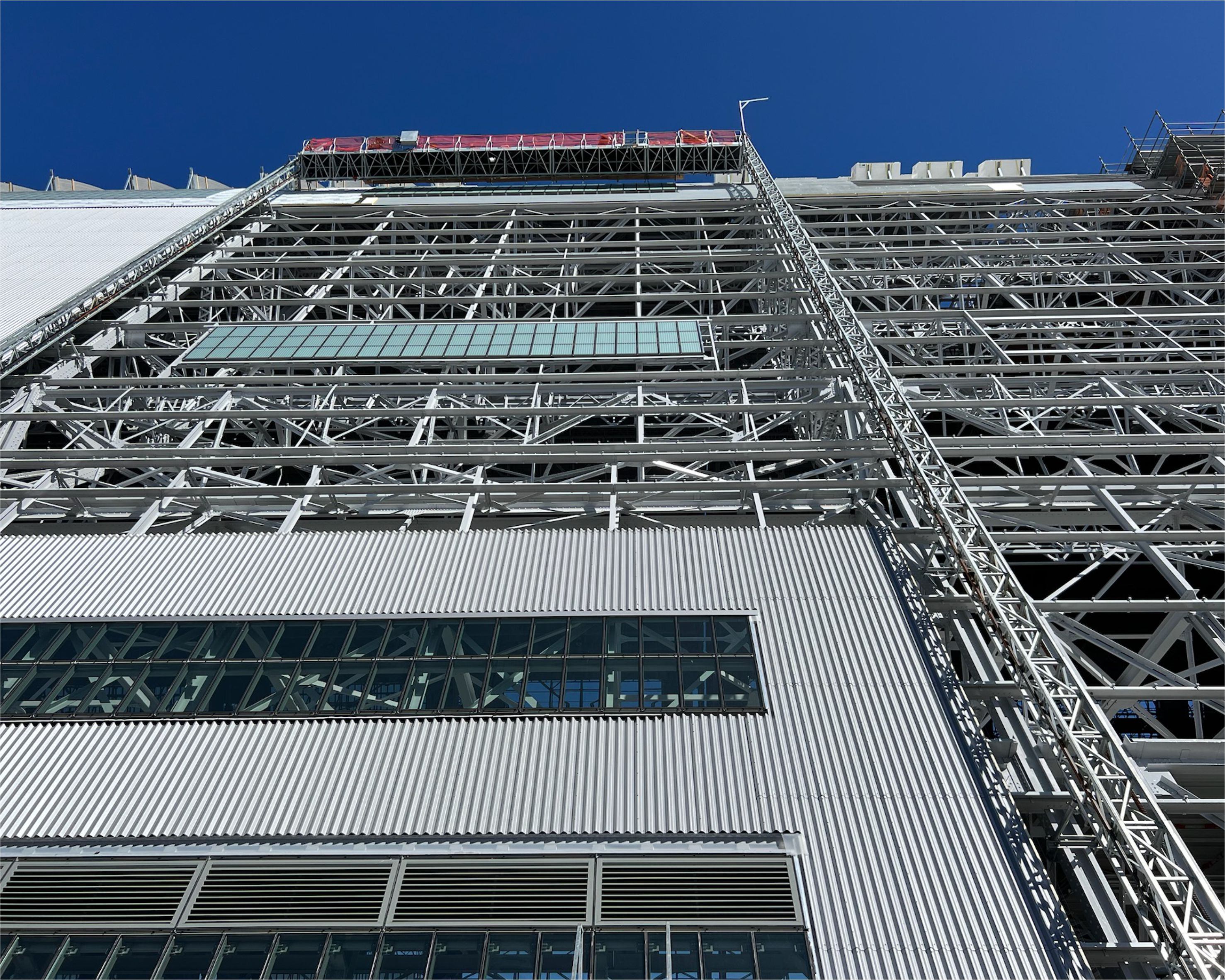

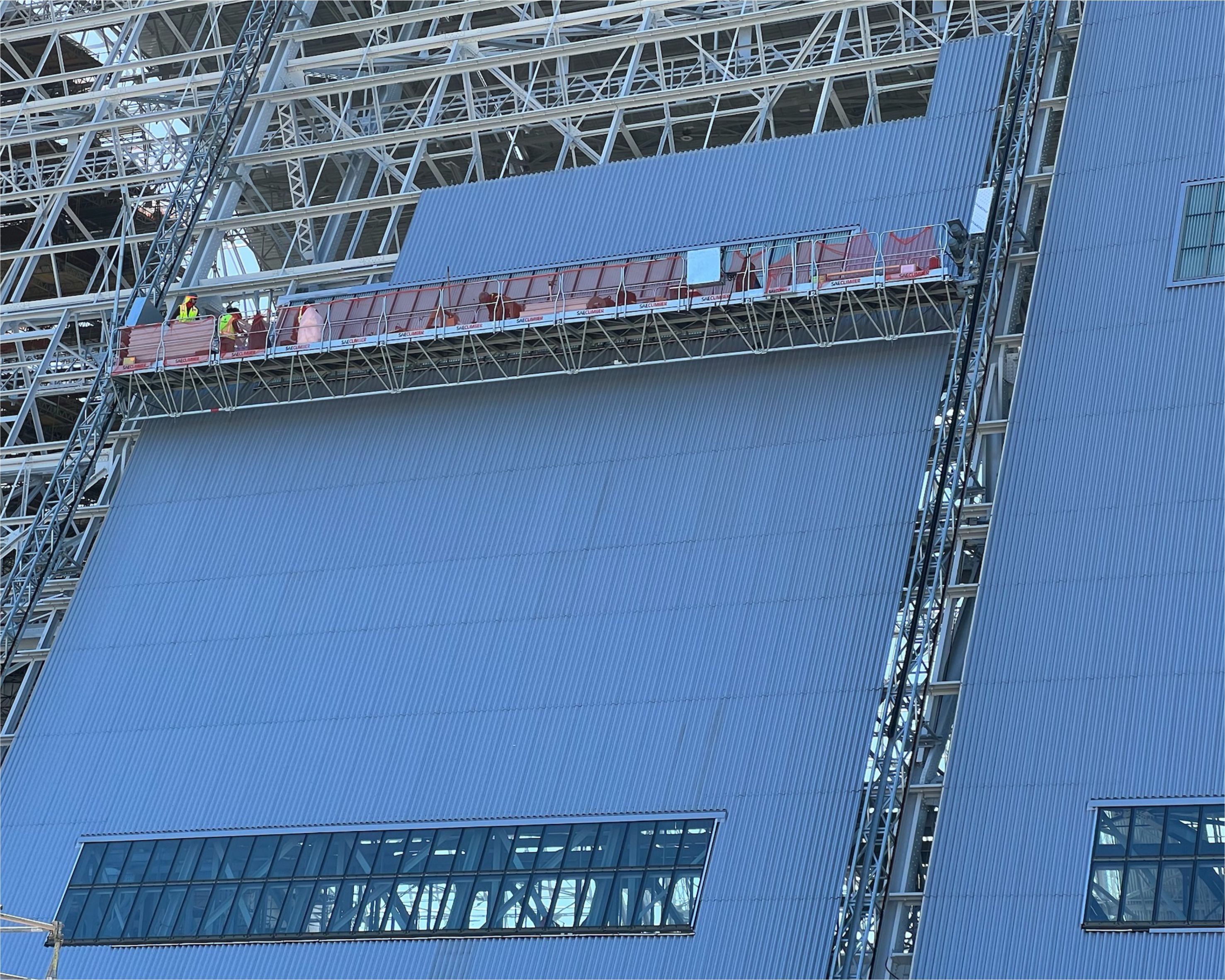

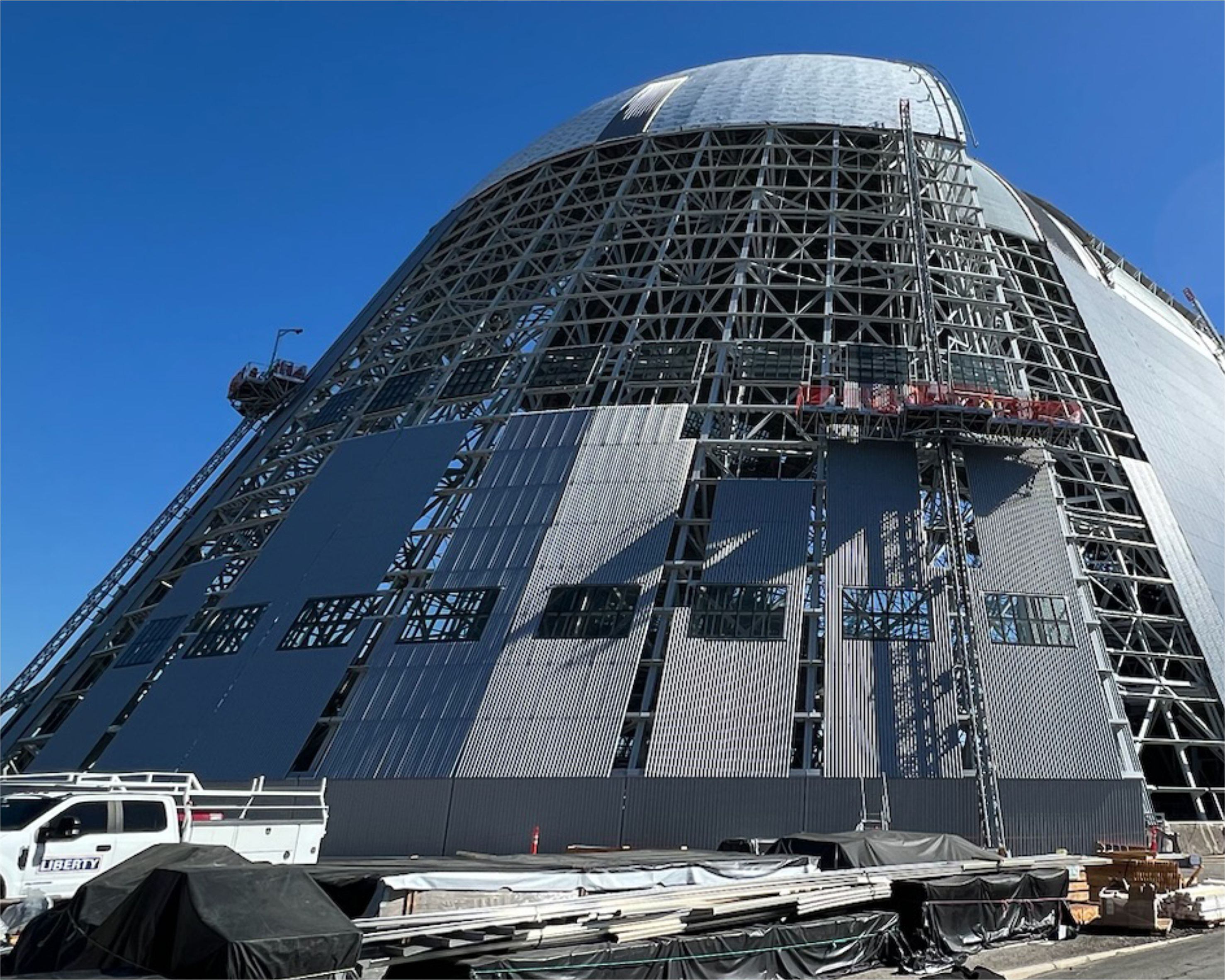

Images

Each image shows the quality, design, and technology that define our products, designed to offer safety, efficiency, and durability in every project.

Advantages

P45
Great performances.
Great stability even in sigle mast.
It covers a large working area.
Possibility of large wall extensions.
Large quantity of accessories available such as self propelled chassis or Free standing version (18 m of height without ties).
Ideal for all types of heavy works at huge heights and when very intensive works are required.

P45S
High performance.
Covers a large work area.
Allows for large wall extensions.
Ideal for all types of medium and heavy work such as curtain walls, major renovations, face brick, demolitions, etc.
Offers greater load capacity.

Available with Industry 4.0 remote-control monitoring of malfunctions and operation.

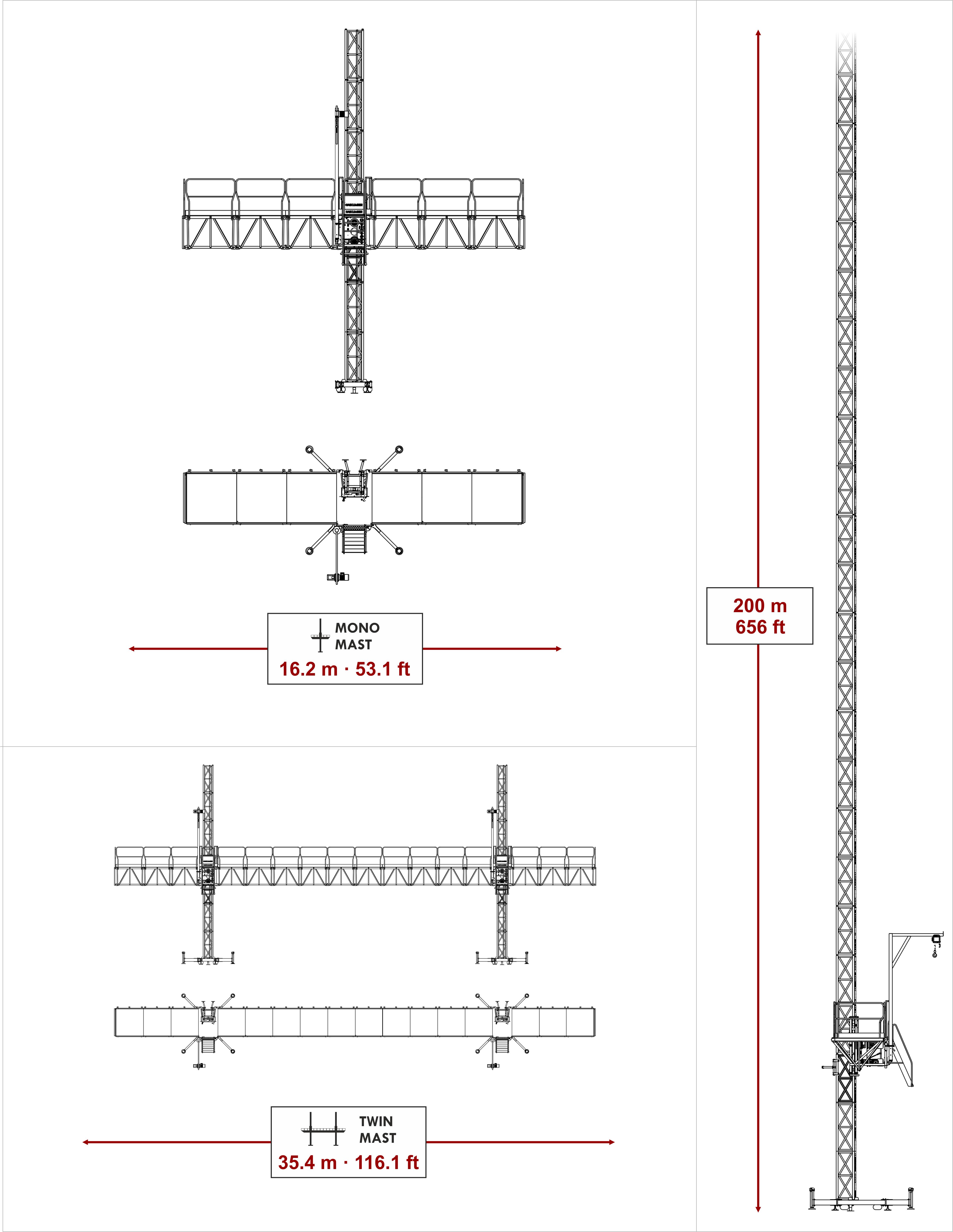

Technical Features

Height

200 m
(*) Greater heights available on request

Speed

10 m/min

Max. length

Single mast
16,2m

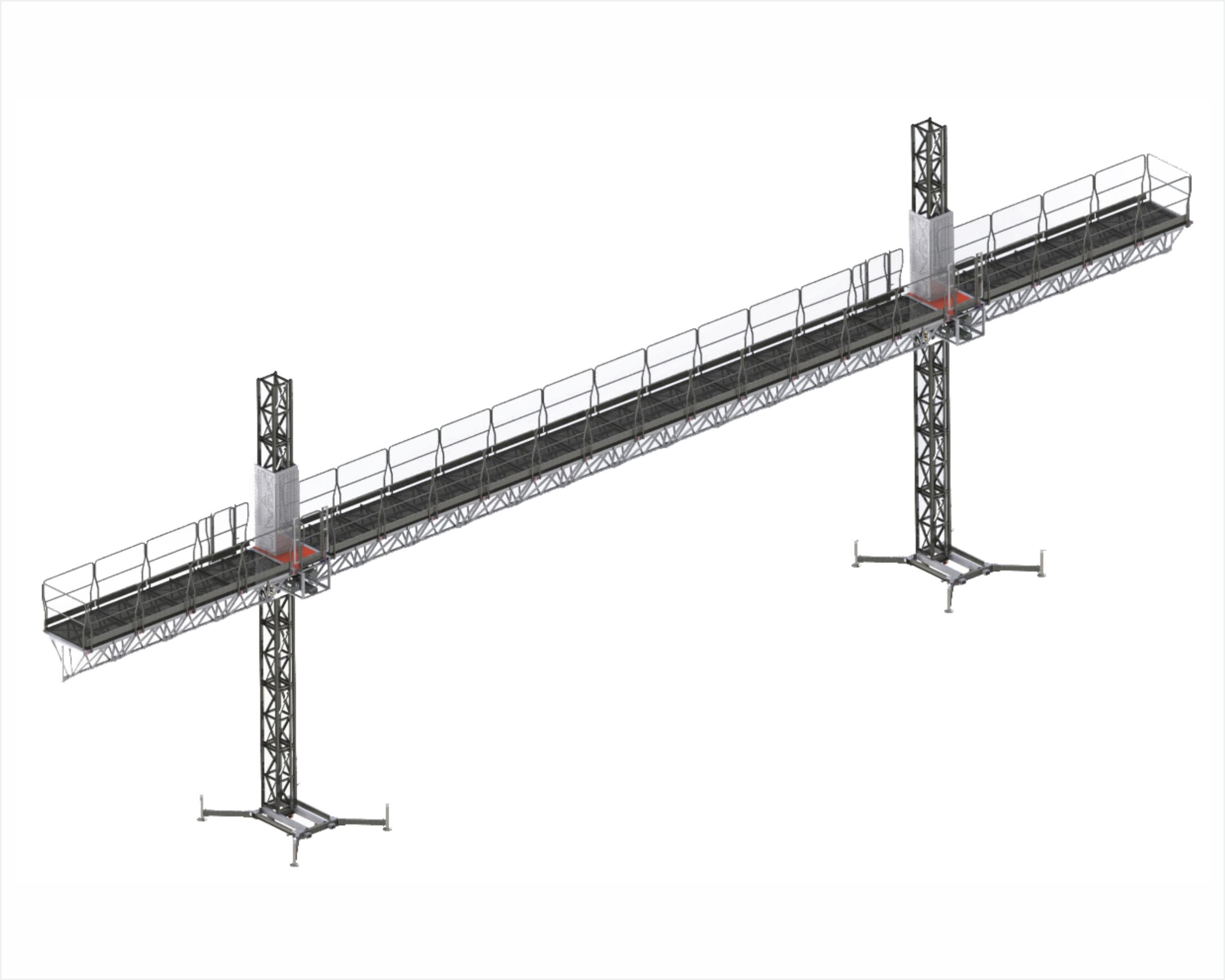

Twin mast
35,4 m

Payload

Single mast
P45 -4400 kg
P45s - 5900 kg

Twin mast
P45 -8450 kg
P45s - 11460 kg
