Materials Hoist H15
Transport Platform PH15
This line consists of two models: PH15 is a transport platform for people and materials regulated according to the standard EN 16719 and H15 material only hoist according to the European standard EN 12158.
Two versions of load capacity 1,500 kg and 2,000 kg.
Available at 12 m/min (maximum permissible speed according to regulations), or multi speed version 12/24/36 m/min with inverter (VFC) for mixed use transport platform/material hoist.
The materail only hoist version, H15 is with speed of 24 m/min or with inverter up to 36 m/min and with automatic control to the landings.
PH15 and H15 are equipped with modular system, interchangeable doors and possibility of third side big door, for maximum flexibility of use on site.
The PH15 and H15 are made to be used in very intense working conditions, with great heights.
PH15 is also available in the twin mast version with modular system with great stability and great load capacity of 3000 Kg.
Mast Section is the same of E15 and P40.
Images

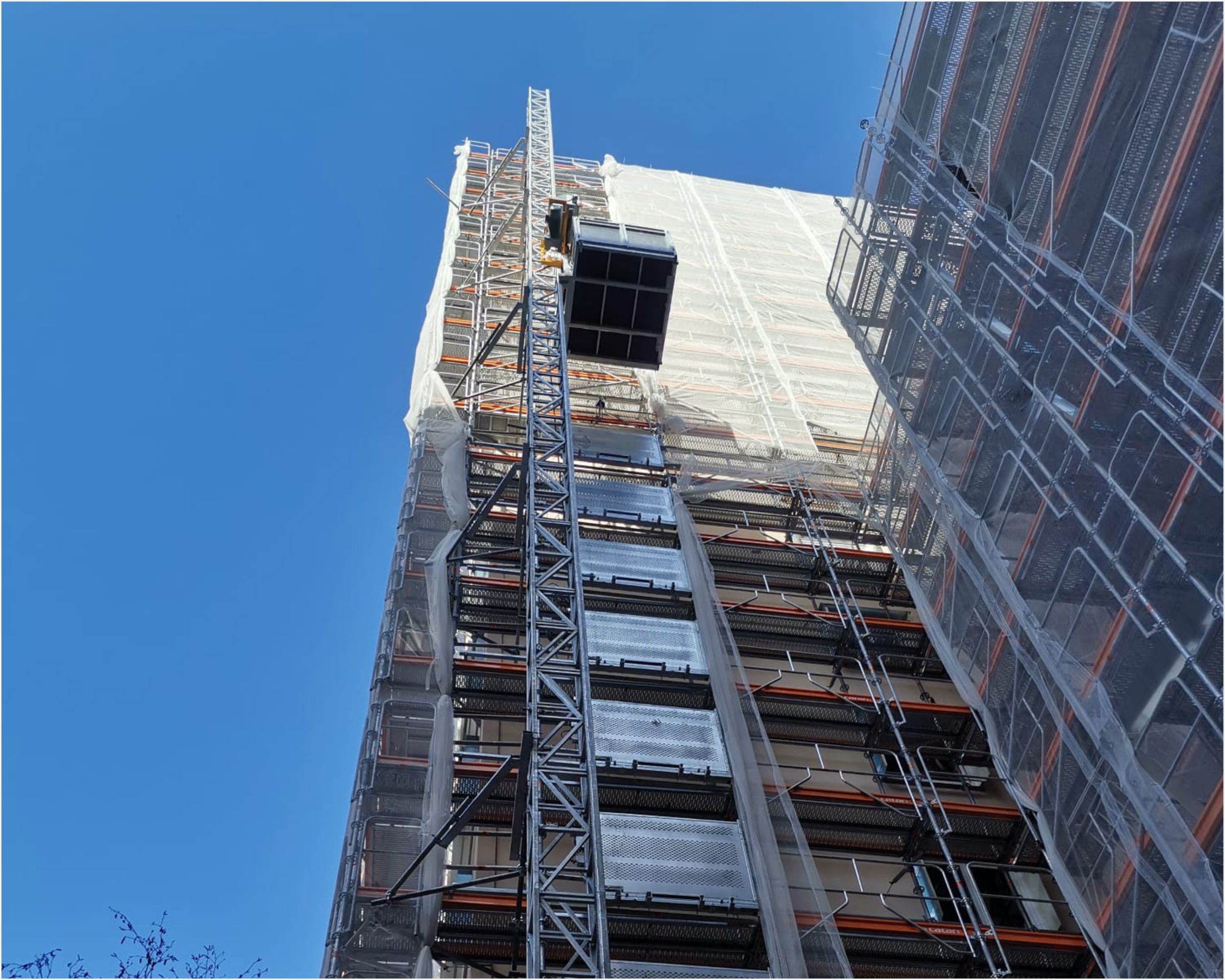

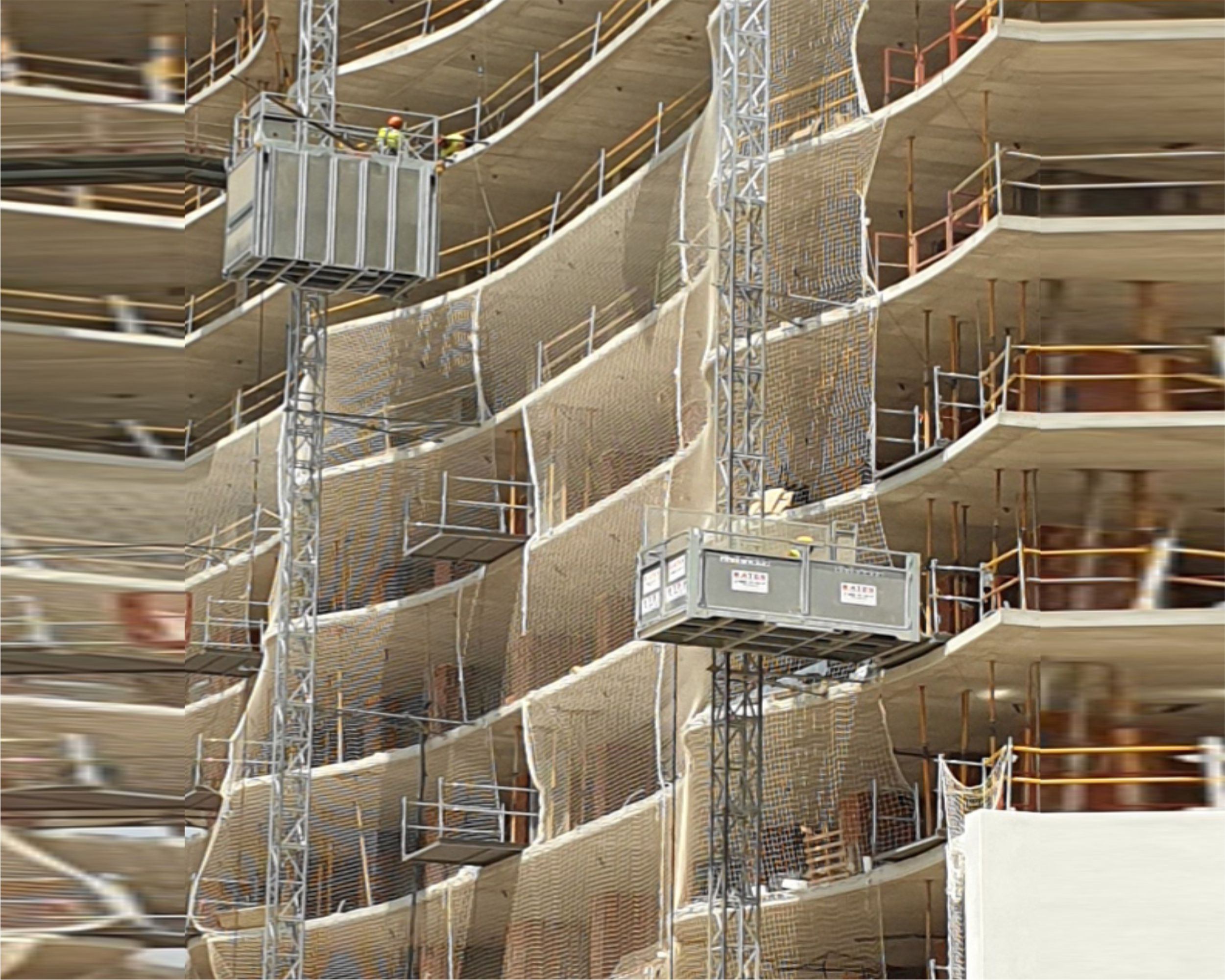

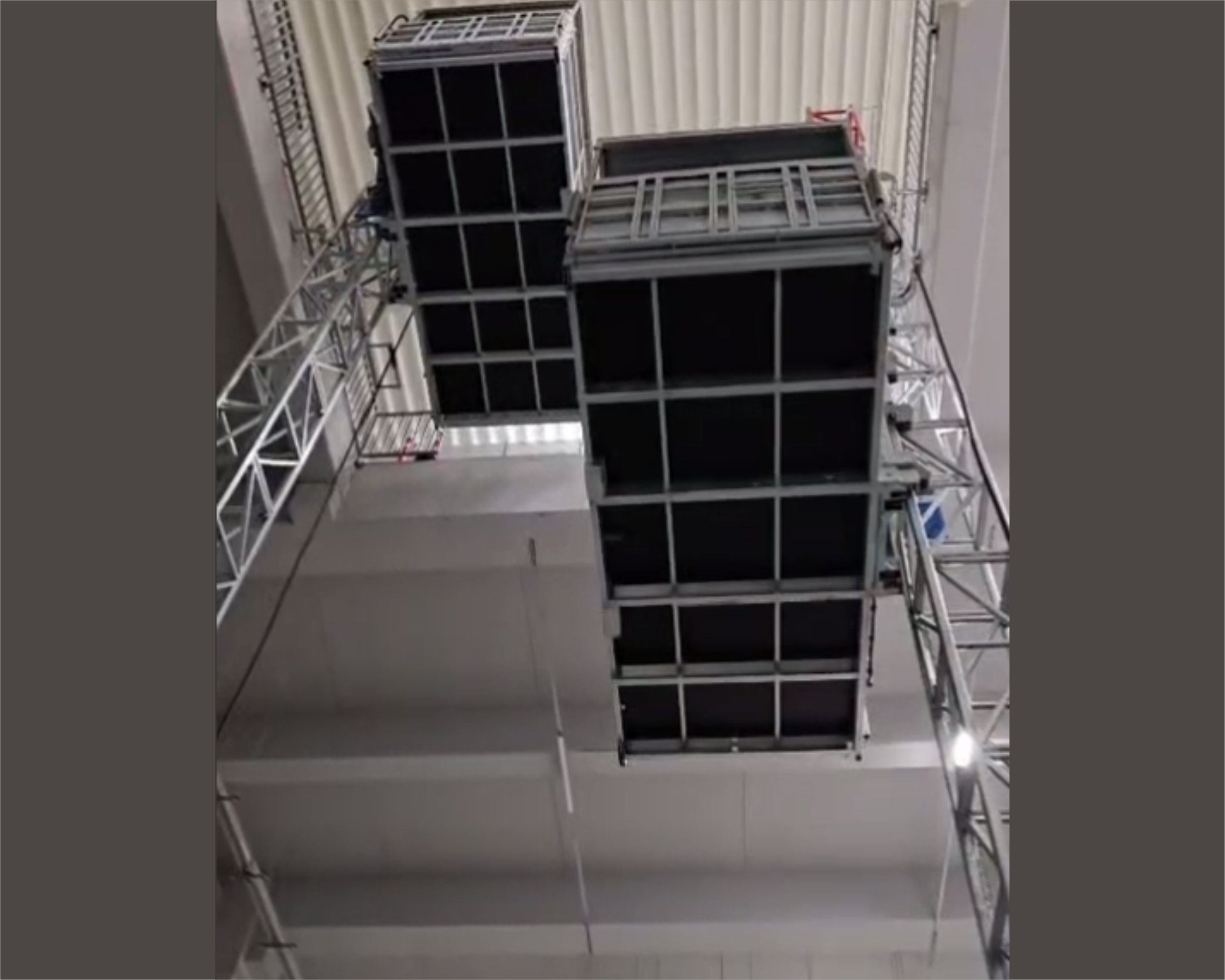

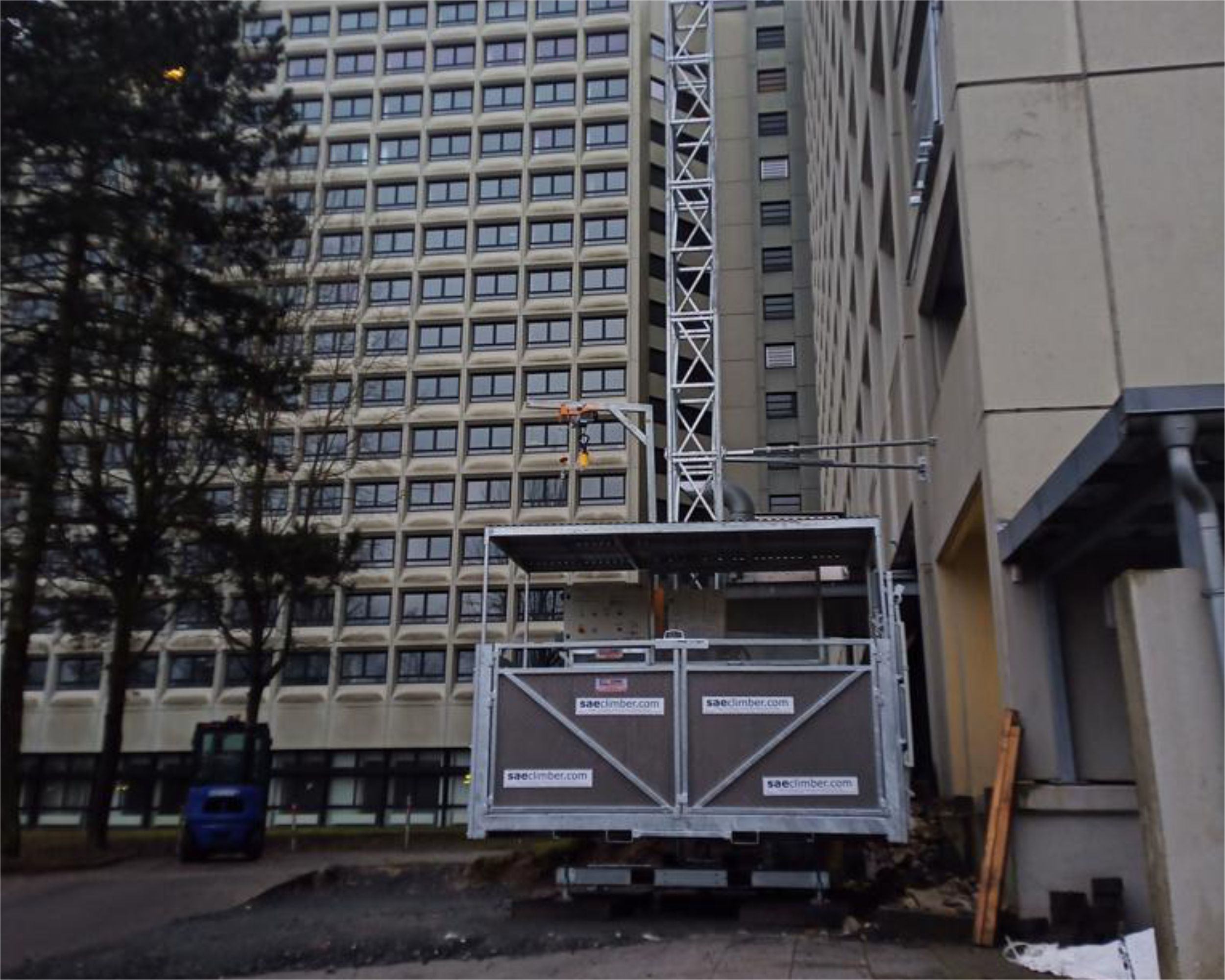

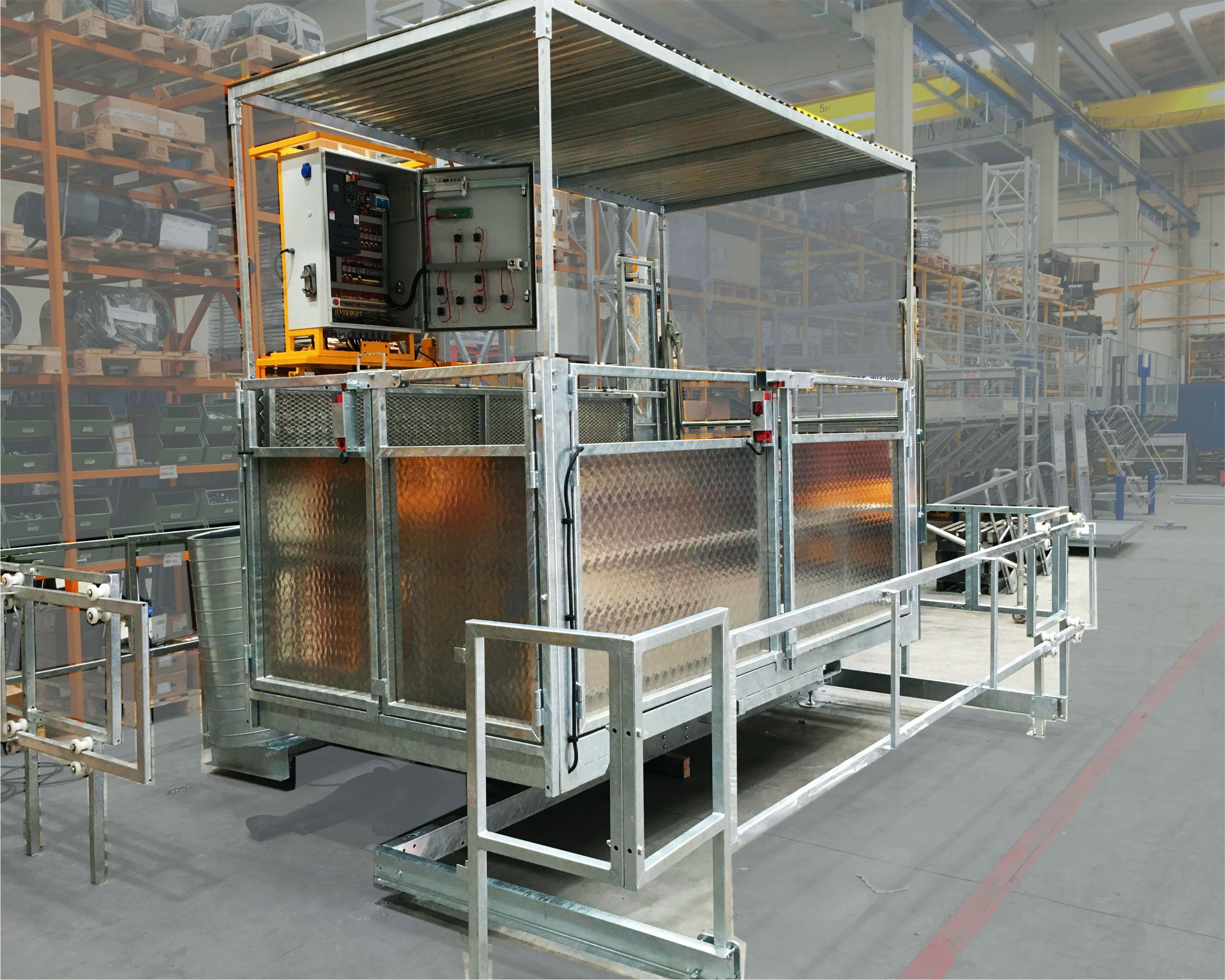

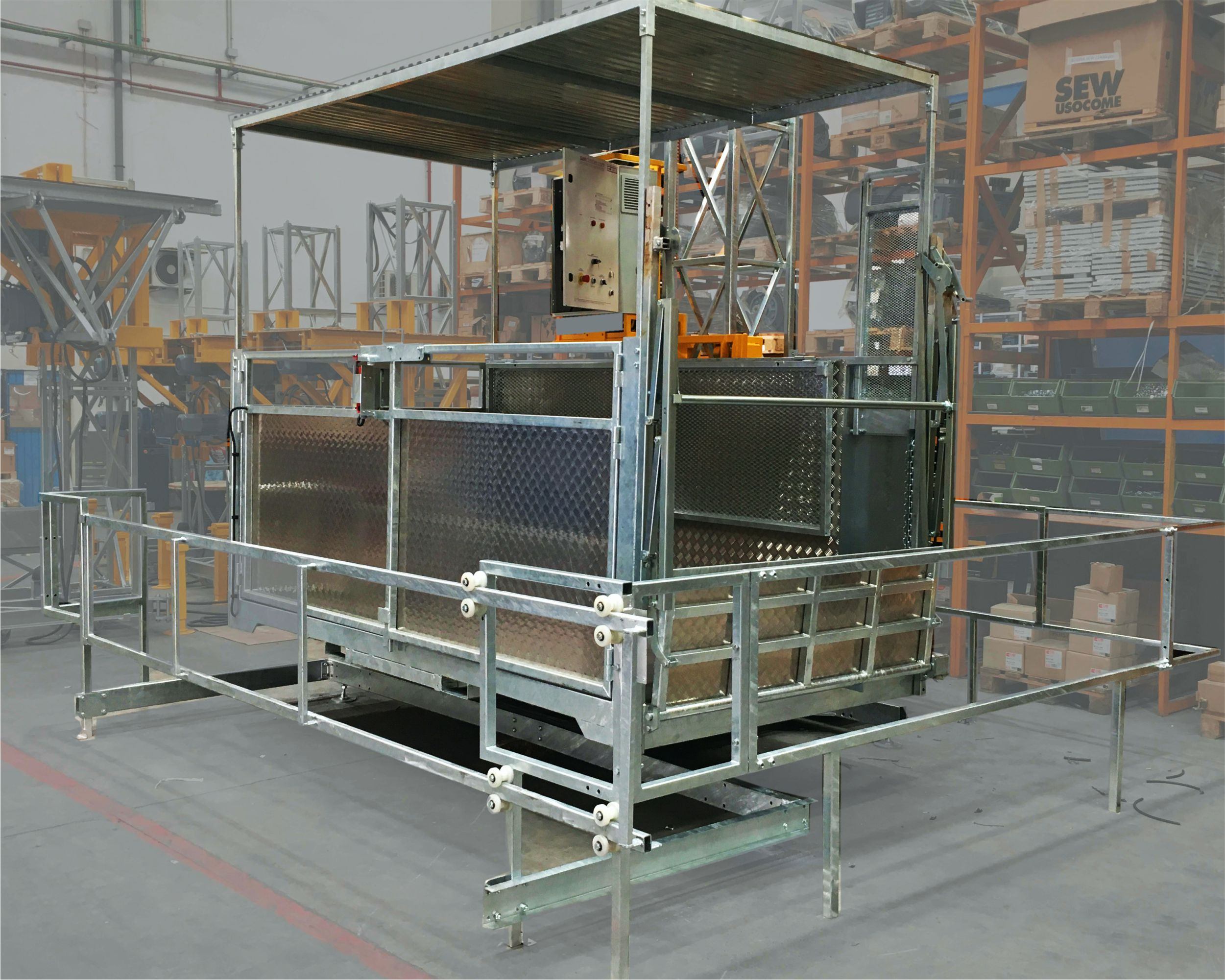

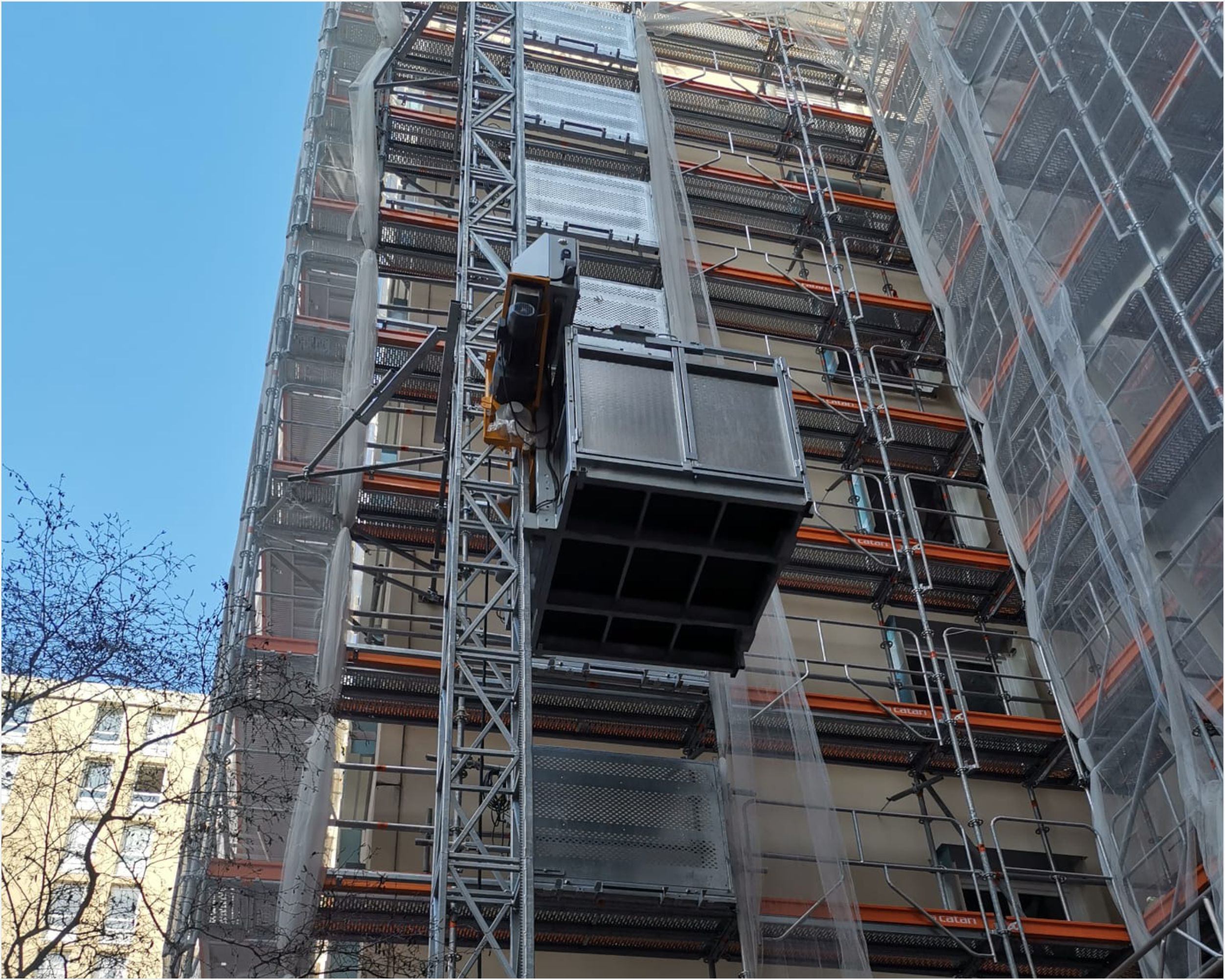

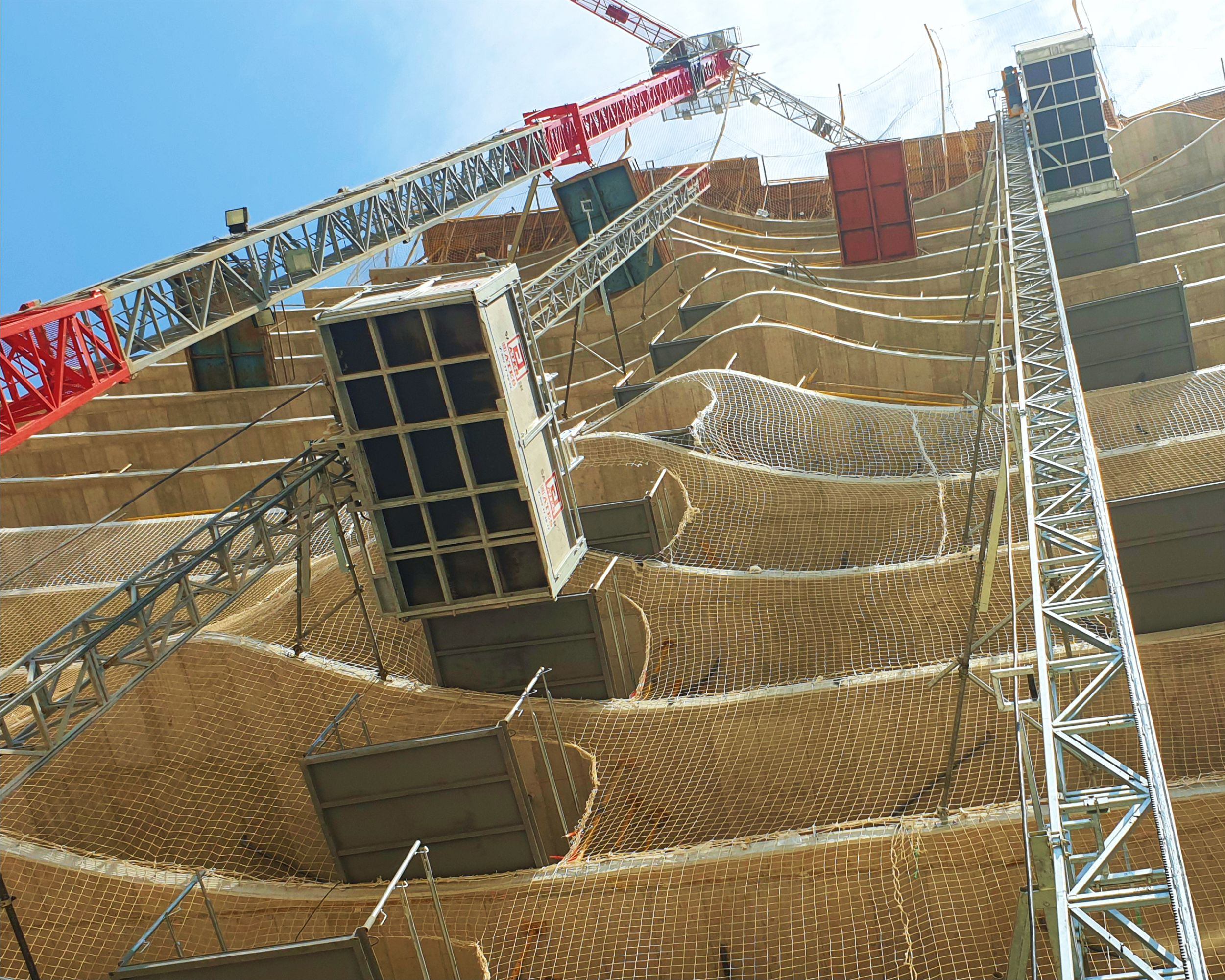

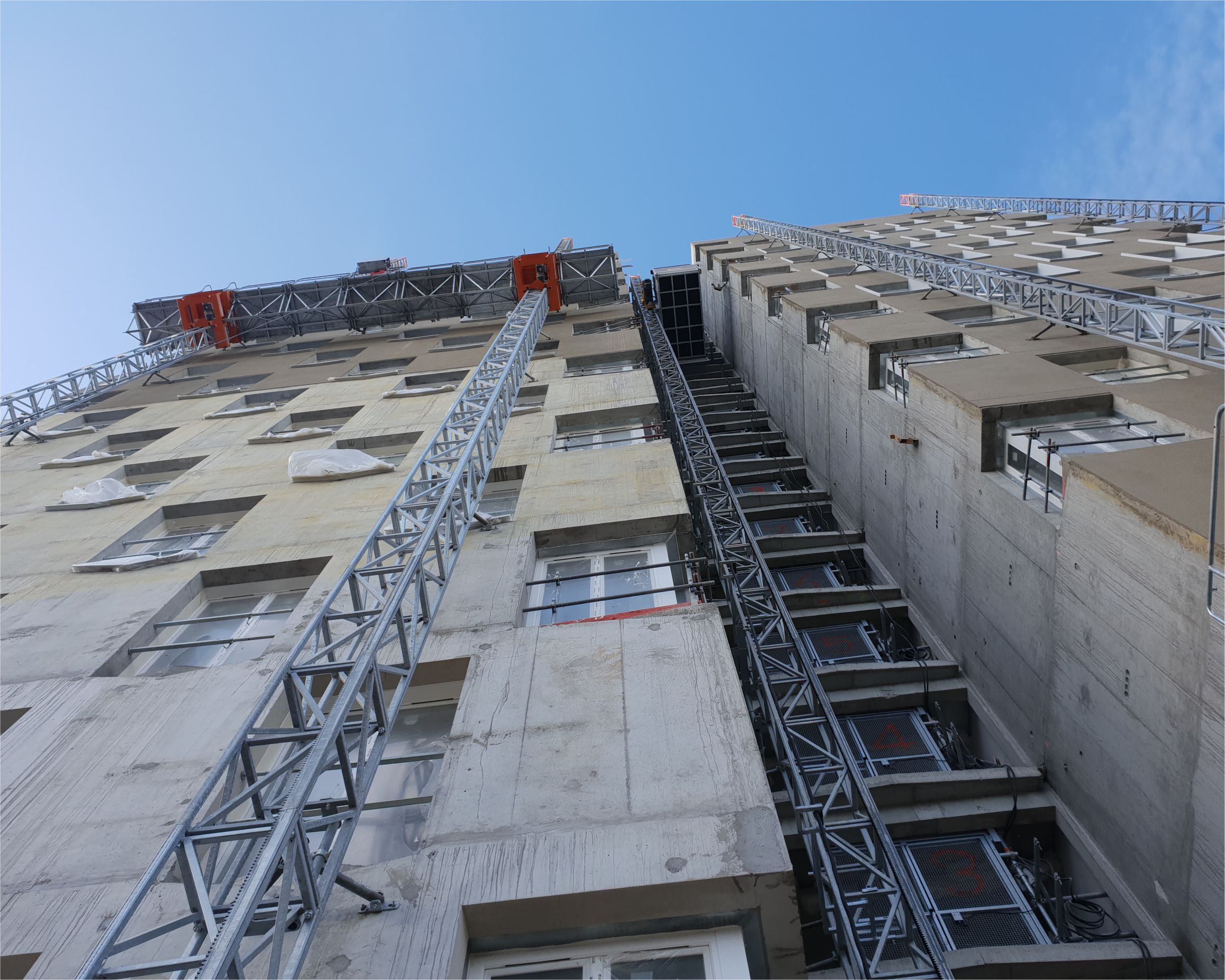

Each image shows the quality, design, and technology that define our products, designed to offer safety, efficiency, and durability in every project.
Advantages
For works with large displacements and big heights.
High load capacity.
Big cabin.
Twin mast version available.
Safety Features
Drive Unit
First-class self-braking gear motors.
First-class inverter (for VFC versions).
Independent emergency parachute brake (CE certified).
Overload control (load cell detection) with digital control.
Mechanical anti-tilt safety lock.
Machine
Safety limit switch for ascent and descent.
Emergency limit switch for ascent and descent.
Inductive safety limit switch to detect mast presence.
Safety limit switch and power cable tear-off device (to prevent cable breakage).
Electromechanical or inductive safety limit switch for cabin doors (depending on version).
Magnetothermal protections and amperometric differential switches.
Terminal mast with half rack to prevent tipping.
Cabin
Double movement cabin door opening to prevent accidental opening.
Foldable platform for assembly with protective handrails and safety limit switch.
Cabin protection roof (for transport).
Safety panel for column protection.
Visual fault diagnosis.
Device for manual descent in the event of a power failure.
Automatic safety stop at a height of 3 m with double impulse for descent.
Safety net under basket (only for PH5 and PH10).
Controls
Remote control for drop test.
Remote control for assembly (only for goods lifts).
Floor stop control system with wireless cards (wireless system).
Light-type electrical cable. No control cables required thanks to the wireless system.
Digital self-diagnostic system.
Digital machine control system.

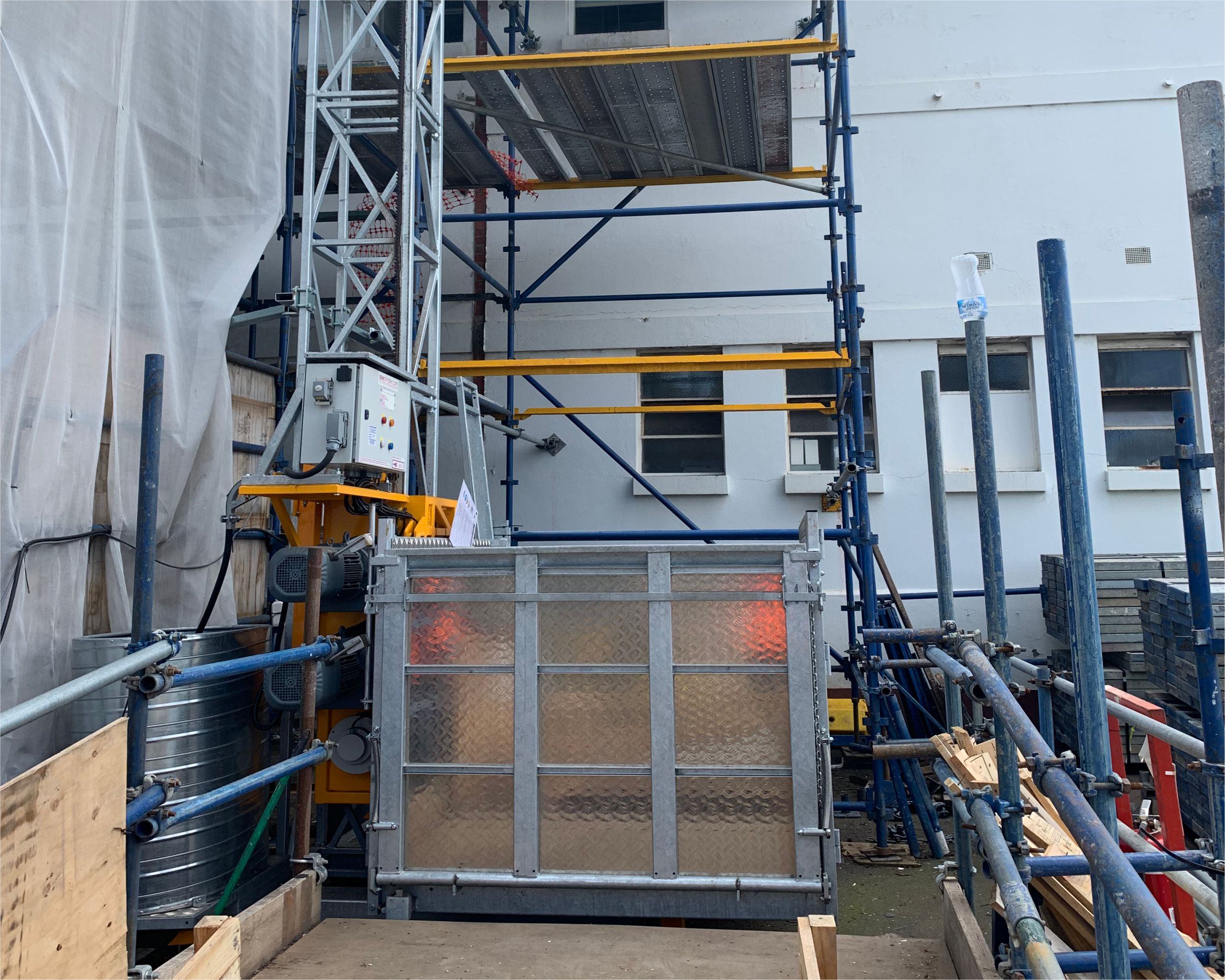

Base · Base enclosure
Base panel with floor display and automatic cabin dispatch to the desired floor.
Base enclosure access door safety interlock.
Base chassis with certified rubber shock absorbers.
Cable reel or cable trolley.
Landings on floors
Landing doors on upper and lower floors, equipped with safety interlock.
Cabin call panel on floors.
Machine durability
Hot-dip galvanised parts, including the entire cabin, for a long machine service life.
Available with Industry 4.0 remote control for faults and operation
Technical Features
Height
150 m
(*) Greater heights available on request
Speed
12 - 24 - 36 m/min

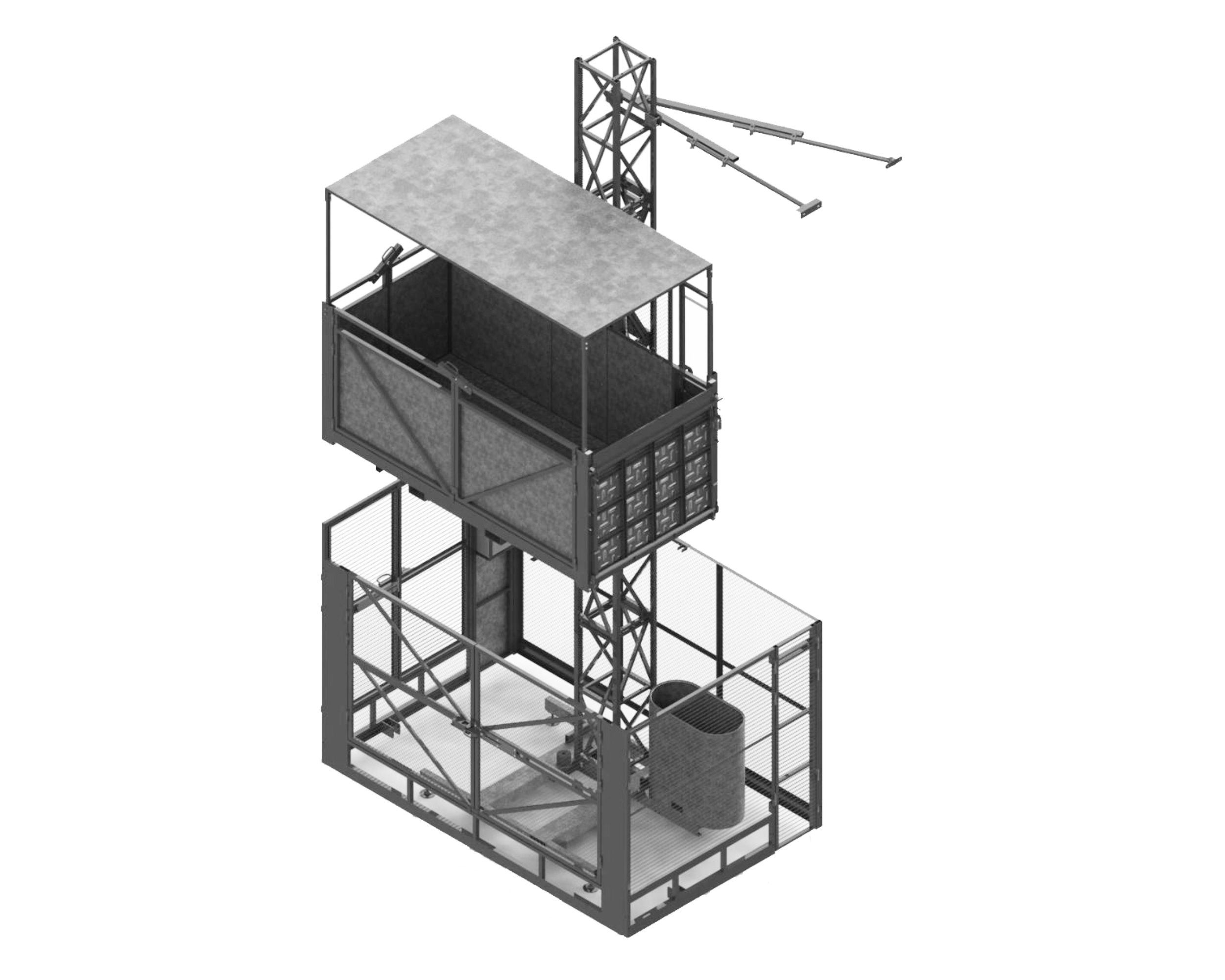

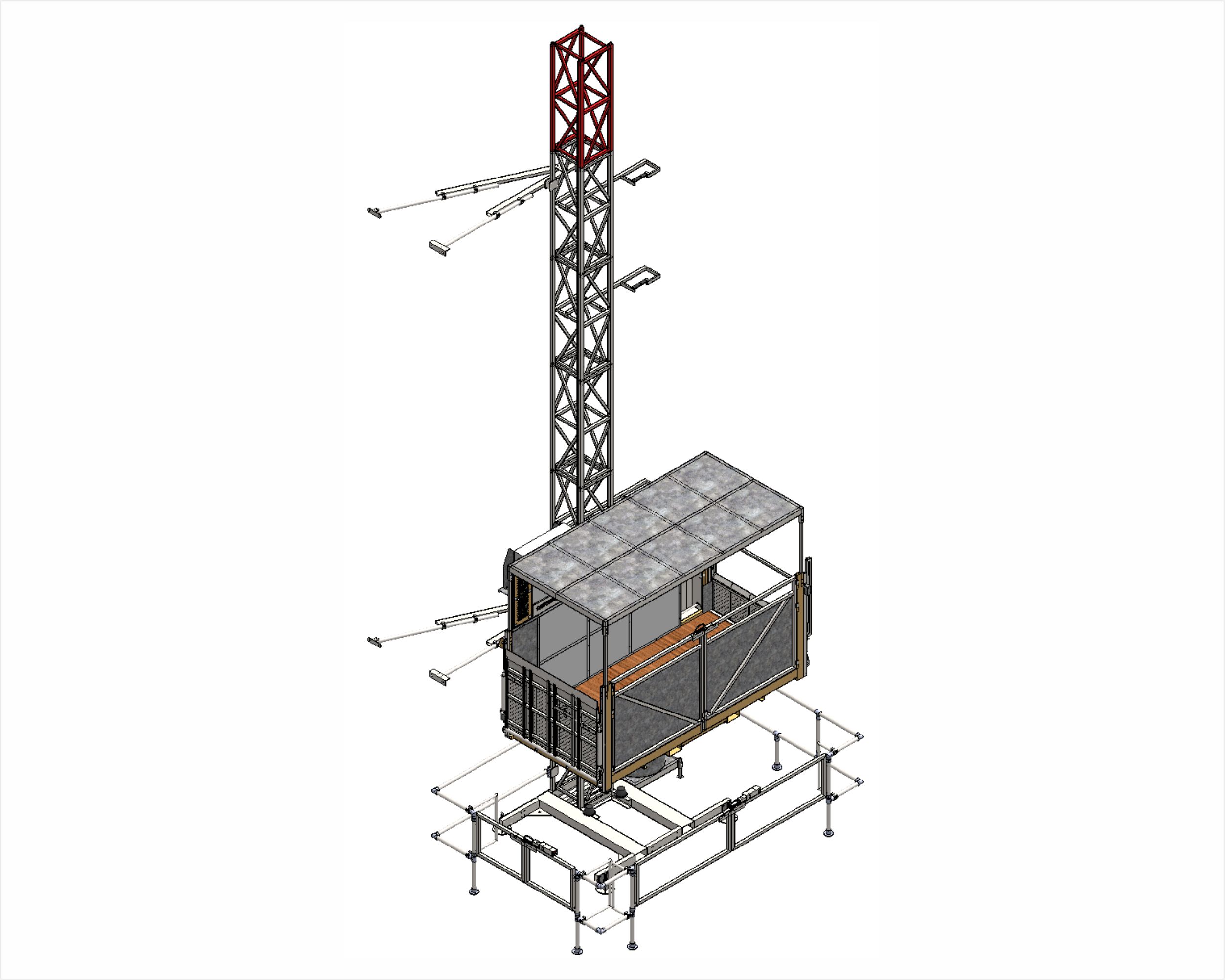

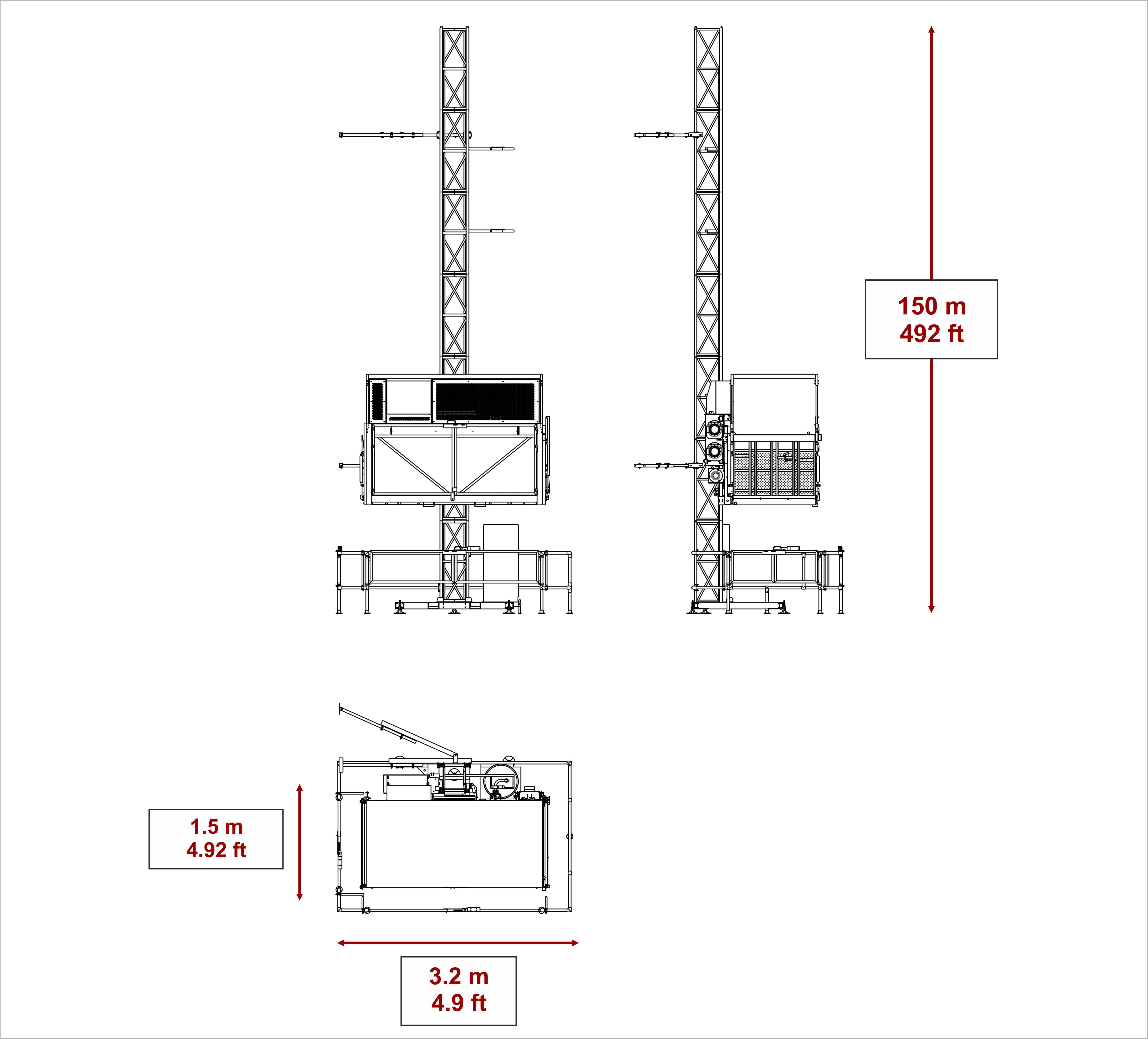

Cabin dimensions
PH15 - H15: 3,2 x 1,5 m (L X W)
PH15 TWIN : 4,5 x 1,5 m (L X W)
Payload
1500 - 2000 kg
PH15 TWIN: 3000 kg
