Materials Hoists H30
Transport Platforms PH30
This line consists of two models: PH30 is a transport platform for people and materials regulated according to the norm EN 16719 and H30 material only hoist regulated according to the norm EN 12158. Load capacity of 3.000 Kg.
Available at 12 m/min (maximum permissible speed according to the regulations), or multi speed version 12/24/36 m/min with inverter for mixed use in transport platform/ material only hoist .
The material only hoist version H30 is with speed of 24 m/min or with inverter up to 36 m/min and with automatic control to the landings.
PH30 and H30 are provided with interchangeable doors and with the possibility of a third large side door, for maximum flexibility of use on site
The PH30 - H30 product line is designed to be used in very intense working conditions, with great heights.
Available in several versions:
Jumbo version with modular cabin up to 6 meters in length.
Twin cage version with two independent cabins on the same mast.
Combi version with p&m hoist E30 on one side and PH30 or H30 on the other side of the mast.
Mast Section is the same of E30 and P50.
Images
Each image shows the quality, design, and technology that define our products, designed to offer safety, efficiency, and durability in every project.
Advantages
For works with large displacements and big heights.
Max Load capacity.
Big cabin with modular solution up to a length of 6 m (Jumbo Version).
Twin cage version also available.
Safety Features
Drive Unit
First-class self-braking gear motors.
First-class inverter (for VFC versions).
Independent emergency parachute brake (CE certified).
Overload control (load cell detection) with digital control.
Mechanical anti-tilt safety lock.
Machine
Safety limit switch for ascent and descent.
Emergency limit switch for ascent and descent.
Inductive safety limit switch to detect mast presence.
Safety limit switch and power cable tear-off device (to prevent cable breakage).
Electromechanical or inductive safety limit switch for cabin doors (depending on version).
Magnetothermal protections and amperometric differential switches.
Terminal mast with half rack to prevent tipping.
Cabin
Double movement cabin door opening to prevent accidental opening.

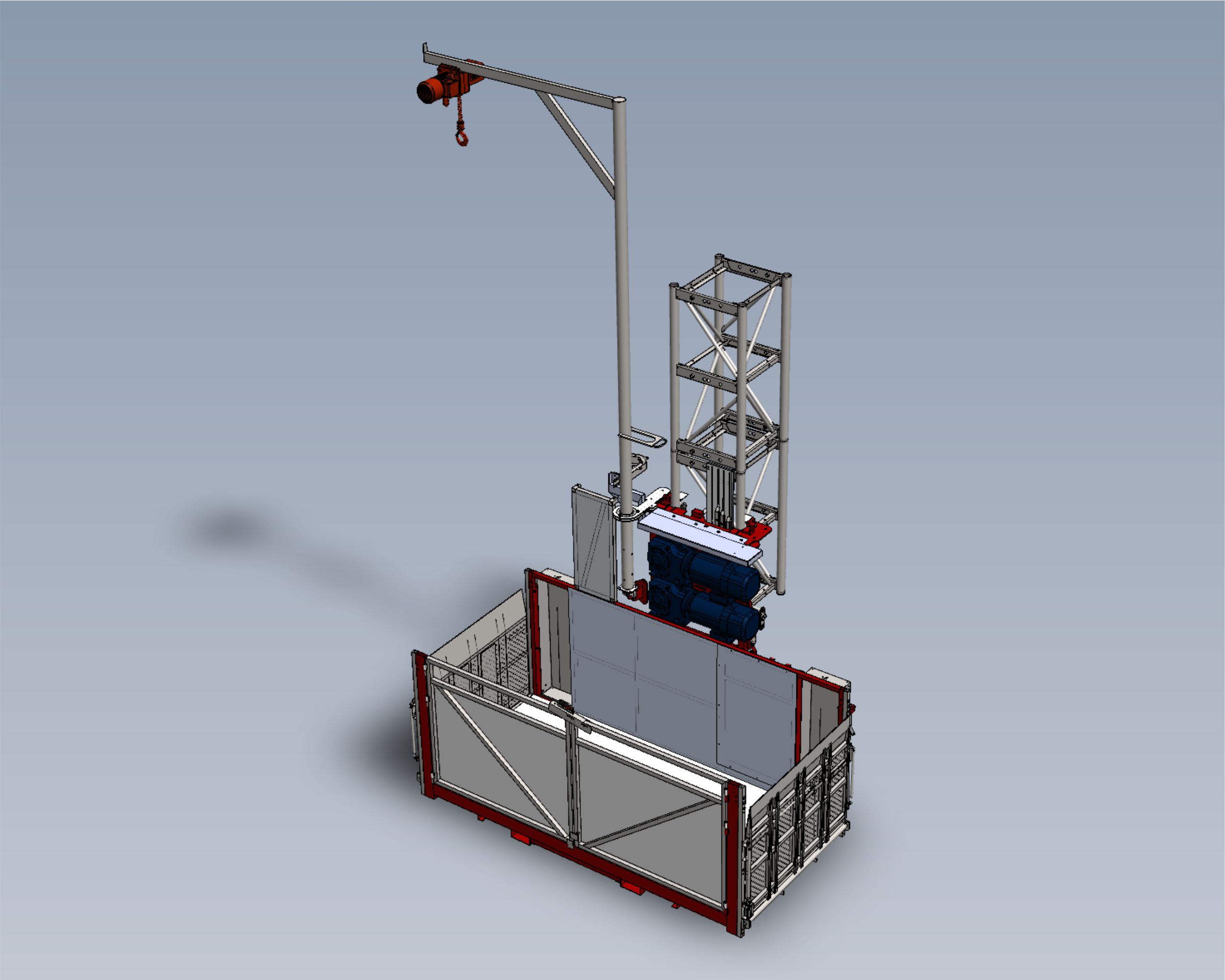

Foldable platform for assembly with protective handrails and safety limit switch.
Cabin protection roof (for transport).
Safety panel for column protection.
Visual fault diagnosis.
Device for manual descent in the event of a power failure.
Automatic safety stop at a height of 3 m with double impulse for descent.
Safety net under basket (only for PH5 and PH10).
Controls
Remote control for drop test.
Remote control for assembly (only for goods lifts).
Floor stop control system with wireless cards (wireless system).
Light-type electrical cable. No control cables required thanks to the wireless system.
Digital self-diagnostic system.
Digital machine control system.
Base · Base enclosure
Base panel with floor display and automatic cabin dispatch to the desired floor.
Base enclosure access door safety interlock.
Base chassis with certified rubber shock absorbers.
Cable reel or cable trolley.
Landings on floors
Landing doors on upper and lower floors, equipped with safety interlock.
Cabin call panel on floors.
Machine durability
Hot-dip galvanised parts, including the entire cabin, for a long machine service life.
Available with Industry 4.0 remote control for faults and operation
(*) Greater heightsavailable upon request

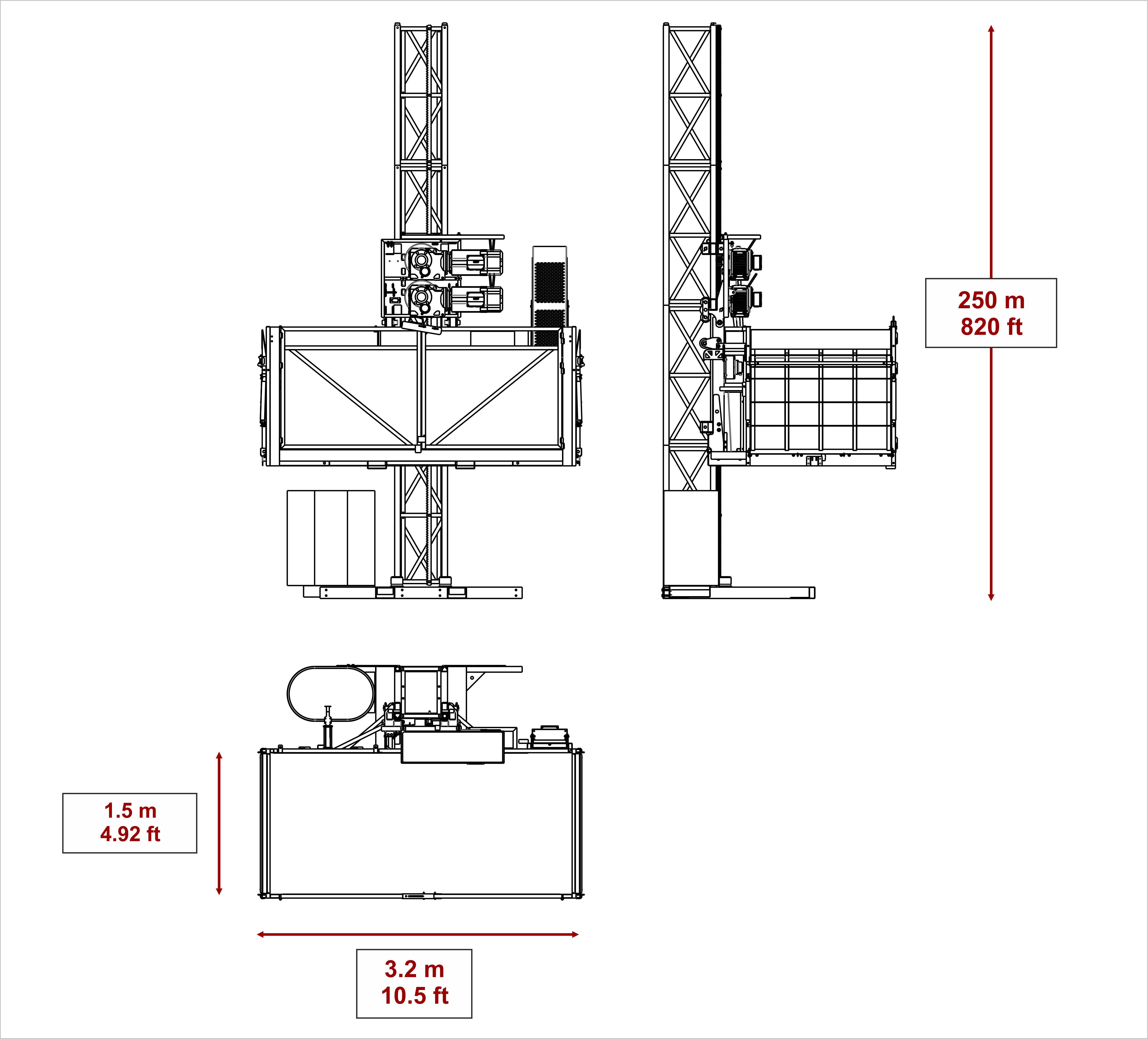

Technical Features
Height
250 m
(*) Greater heights available on request
Elevation speed
12 - 24 - 36 m/min
Cabin dimensions
3,2 x 1,5 m (L X W)
PH30 JUMBO: 5,7 x 1,5 m (L X W)
PH30 TC: 3,2 x 1,5 m (L X W) X 2
Max. payload
3000 kg
